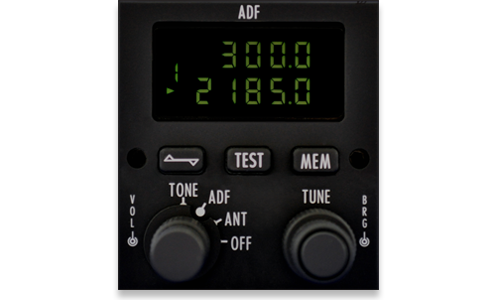

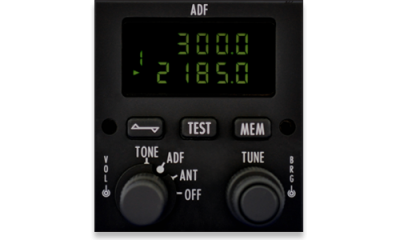

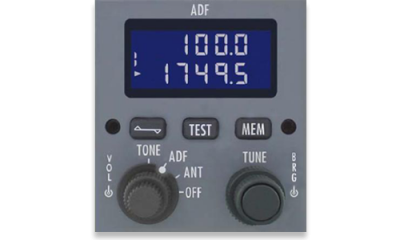

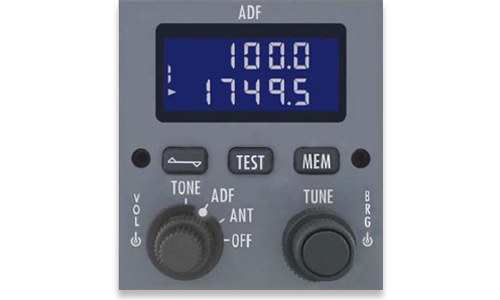

An ADF control panel for use on business, regional and general aviation aircraft. 28VDC input power.
ADF
Description
- First Minima Twisted Nematic (FMTN) LCD Display
- Blue/White LED display and panel lighting for higher reliability
– White or amber color display and NVIS options available (variant dependent) - Active frequency on the upper display, standby on the lower
- Single knob stack frequency selection
- Transfer button for active and standby frequency interchange
- ANT/ADF/TONE selection
- Optional BRG selection and display
- Optional OFF rotary position
- Optional VOLUME control
- CSDB tuning capable
- ARINC 429 tuning capable
- Parallel BCD tuning interface per ARINC 570 (for legacy ADF-60A and ADF-60B radios) – controls radio without a CAD-62 adapter
- 4 memory channels per mode
- Liquid splash-proof design
- Built-in-test (BIT) capability
- Flash technology to support bench-level reprogramming using a PC
- Non-volatile storage of front panel settings
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
Additional information
| Calculated MTBF (op hours) | 20,000 |
|---|---|
| Certification - Aircraft | STC’s available through third parties |
| Certification - Regulatory | TSO-C41d |
| Color | Black, Gray |
| Compliance | RTCA/DO-160F (Environmental), RTCA/DO-178B (Software), RTCA/DO-179 (ADF) ARINC 429, ARINC 712, ARINC 720, ARINC 570 |
| Connectors | J1 Mating: MS3476L24-61SX or equivalent |
| Dimensions | 2.625 (height) x 2.375 (width) x 5.370 (depth) inches, excluding rear connector |
| Lighting | Panel/DisplayLighting (Blue/WhiteLEDs) – 0–5VAC/DC or 28VDC |
| Power | Power (Including all lighting) 28VDC, 7.0Watts (max) |
| Weight | 1.1 pounds (max) |
| Frequency Range | The ADF frequency range is from 100.0 to 1799.5 kHz using 0.5 kHz spacing. The optional extended range is from 2100.0 to 2199.5 kHz using 0.5 kHz spacing. |
