Are you considering flight deck annunciation for an ADS-B fault condition? Gables has your retrofit solution for G6990, G6992, G7490, G7492, G7131 and G7156 ATC/TCAS control panels.
G6990 / G6992 / G7490 ADS-B Data Sheet
ADS-B / ATC / TCAS / Flight ID
Description
Transponder manufacturers offer independent discrete and/or ARINC 429 outputs for both transponder fault and ADS-B fault. By bringing the ADS-B fault discrete to the control panel, we can offer a modification to the existing Gables ATC/TCAS control panel to distinguish an ADSB function failure.
For select G6990 and G6992 models, the control panel modification consists of:

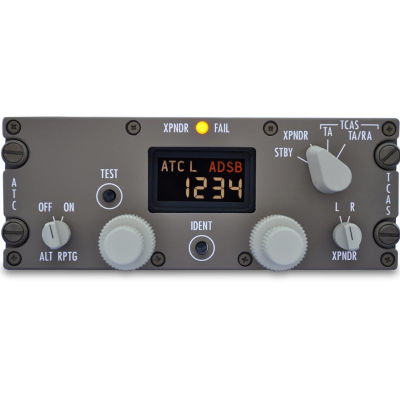

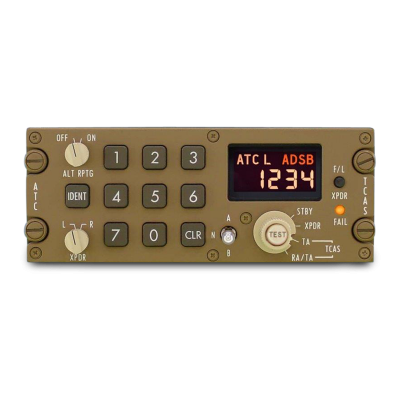

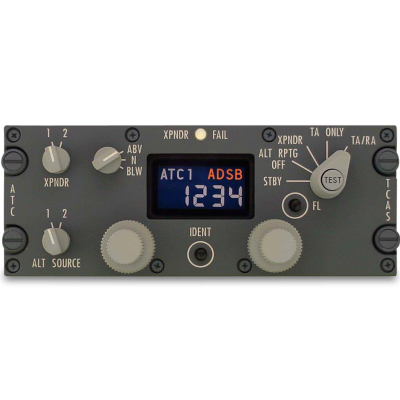

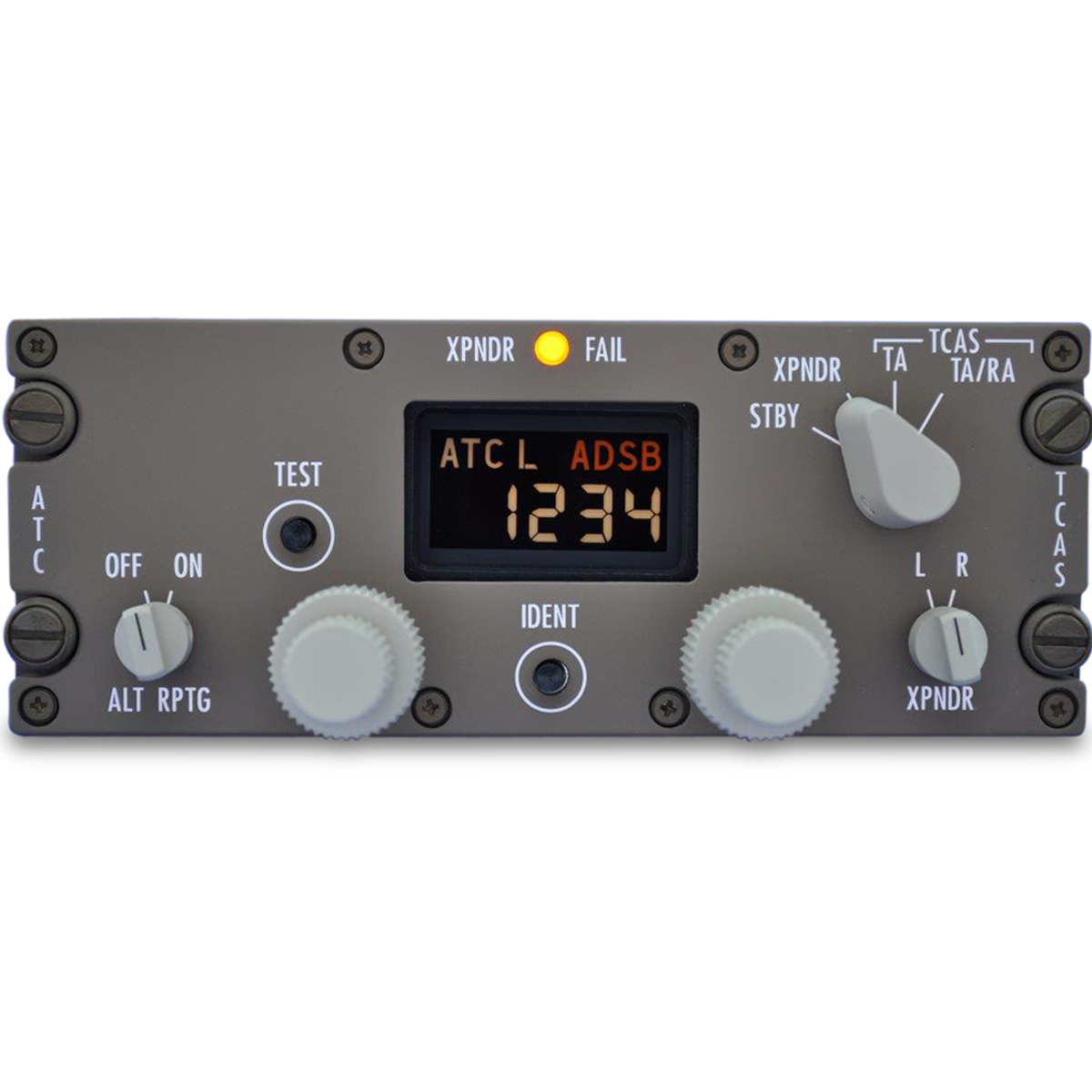

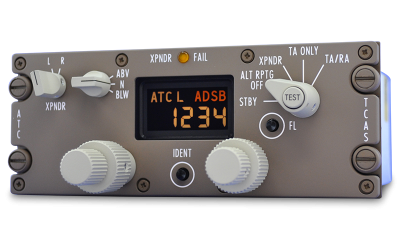

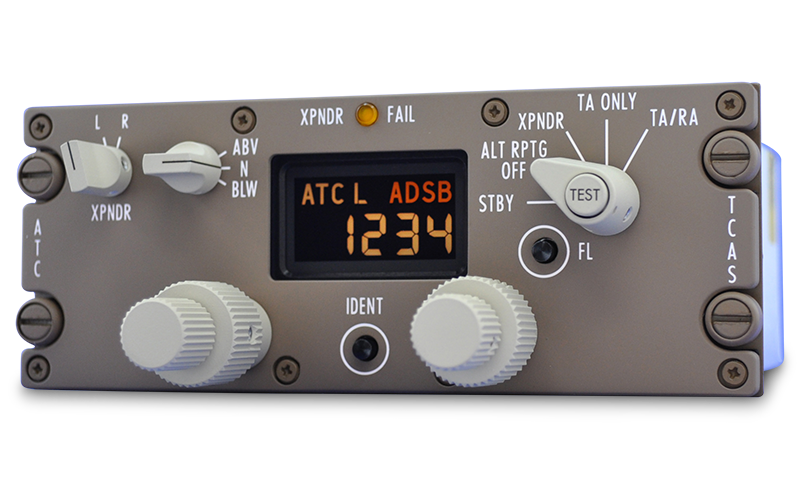

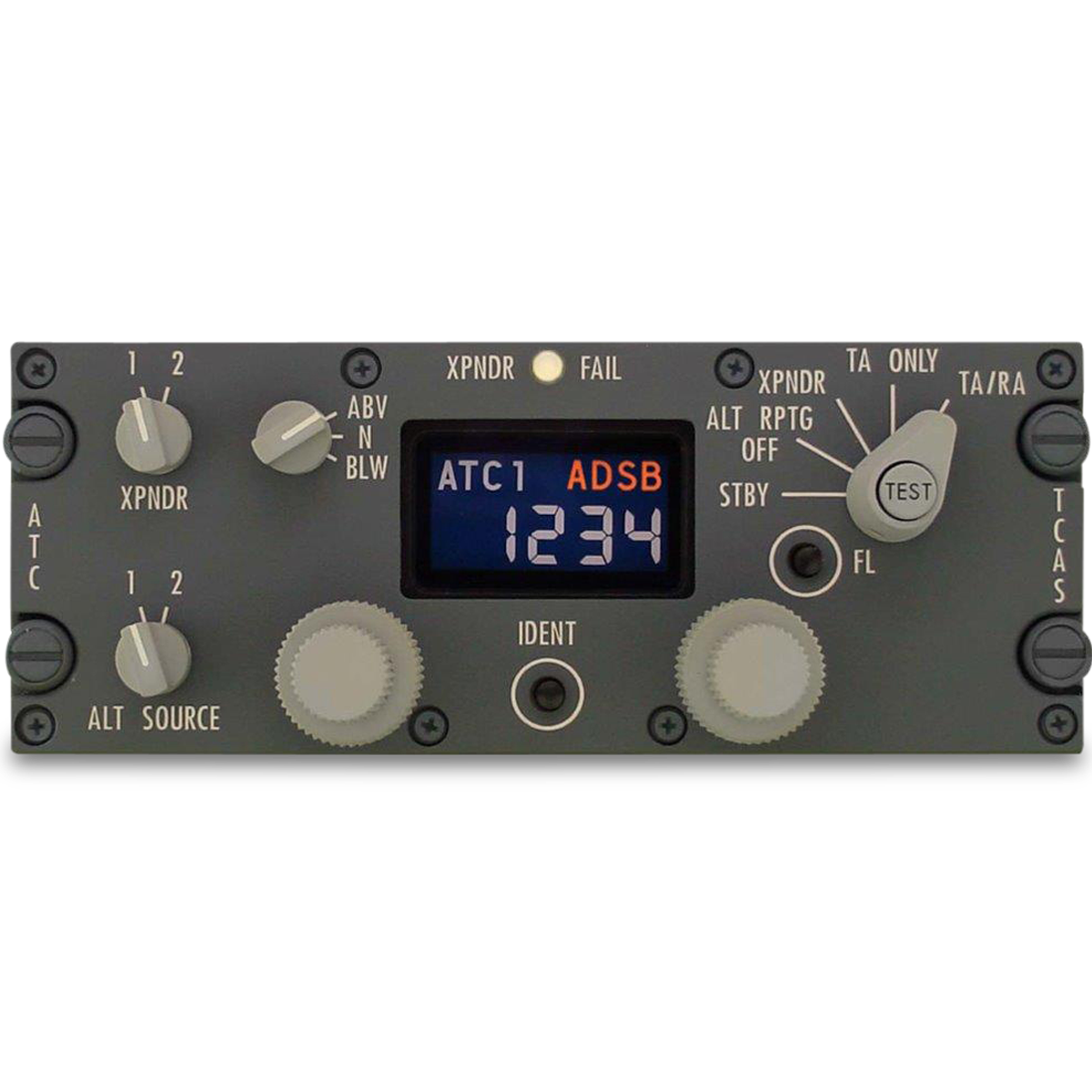

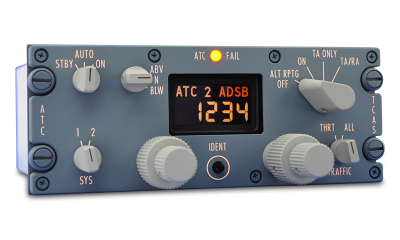

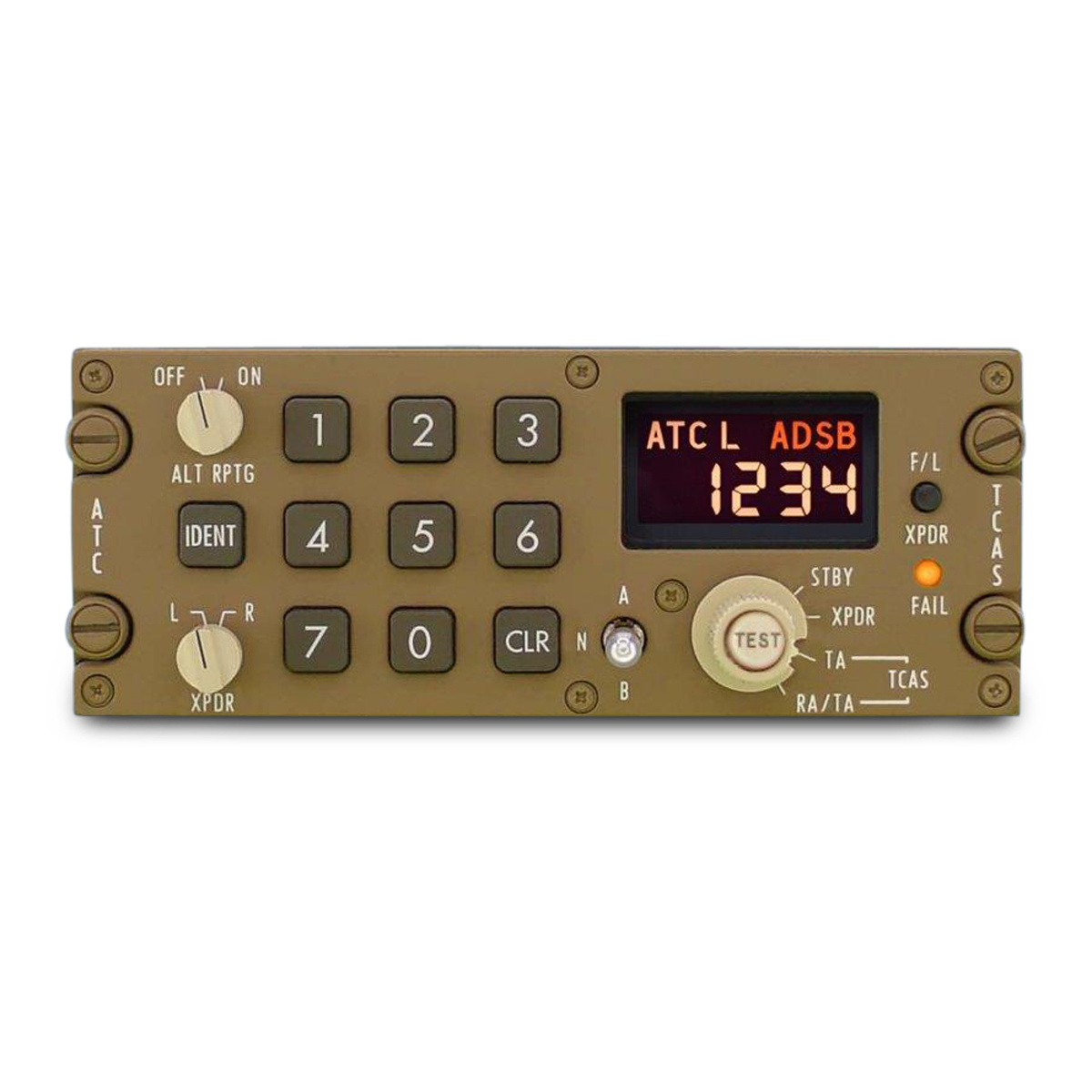

- Replacing the LCD module with new module with ADSB fail annunciator on LCD glass.
- Replacing two printed circuit board assemblies to process ADS-B Fault input discrete.
For select G7490 and G7492 models, the control panel modification consists of:
- Replacing the front bezel assembly to add the ADS-B annunciator.
- Add wiring for the ADS-B fault discrete input.
The part numbering scheme will be:
- G6990-XX —-> G6990-2XX
- G6992-XX —-> G6992-2XX
- G7490-XX —-> G7490-2XX
- G7492-XX —-> G7492-2XX
For more information, please contact us via the inquiry form.
Additional information
| Dimensions | 2.235 (height) x 5.735 (width) x 5.0 (depth) inches, excluding rear connectors |
|---|---|
| Colors | Gray, Brown, Blue/Gray |
| Compliance | RTCA/DO-160B (Environmental) ARINC 429, ARINC 706, ARINC 718, ARINC 720, ARINC 735 DO-178C |
| Certification | TSO-C112 |
| Weight | 2 lbs. |
| Calculated MTBF | 15,000 operating hours |
| Power | 115VAC @400H, 5w max |
