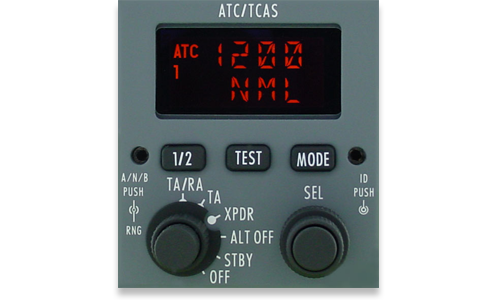

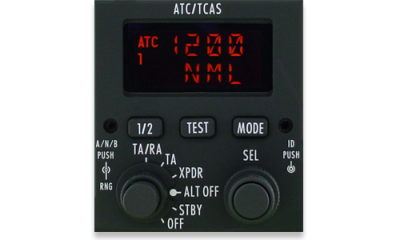

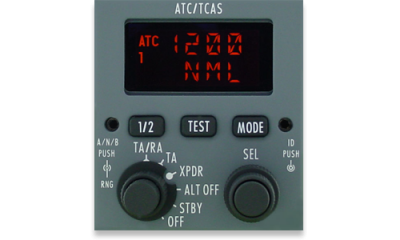

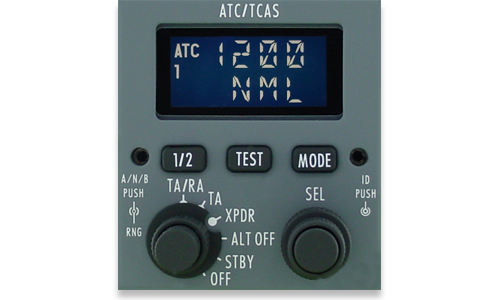

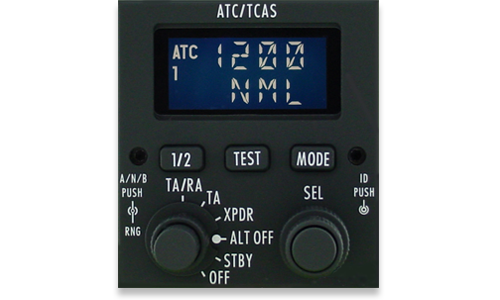

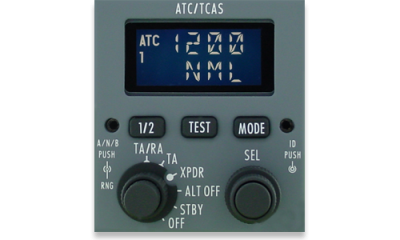

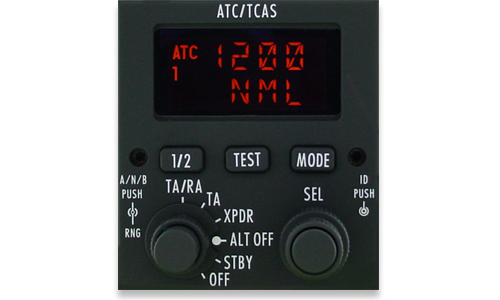

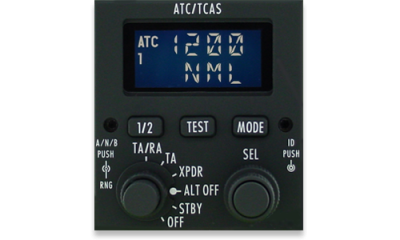

An ATC/TCAS and Flight ID entry control panel for use on business, regional and general aviation aircraft and helos. Allows entry of flight ID to meet the ADS-B mandate.
ATC / TCAS / Flight ID
Description
- Drop-in replacement for CTL92/A and CTL92T with additional Flight ID capability in a one panel solution
- Pin compatible with CTL92T
- Interfaces with TDR-94D or MST-67A via rear connector pin
- First Minima Twisted Nematic (FMTN) LCD Display
- Blue/White LED display and panel lighting for higher reliability
– White or amber color display and NVIS options available (variant dependent) - Liquid splash-proof design
- Built-in-test (BIT) capability
- Flash technology to support bench-level reprogramming using a PC
- Non-volatile storage of front panel settings
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
- Dual Mode-S control panel
- CSDB remote tuning with TDR interface
- ARINC 429 capable
- TCAS Options
– Ranges:
3-5-10-15 (20-40 as extended ranges) nmi for MST mode
3-5-10-20-40 or 5-10-20 or 6-12 nmi for TDR mode
– TA/RA, TA Selection
– ABV/NORM/BLW
– Traffic AUTO-ON
– Functional Test
– Altitude Limits:
A = 2,700 ft
B = 9,900 ft - ATC Options
– Altitude Reporting
ON-OFF
– ADC 1-2 selection
