B747-8 Radio Tuning – Keypad

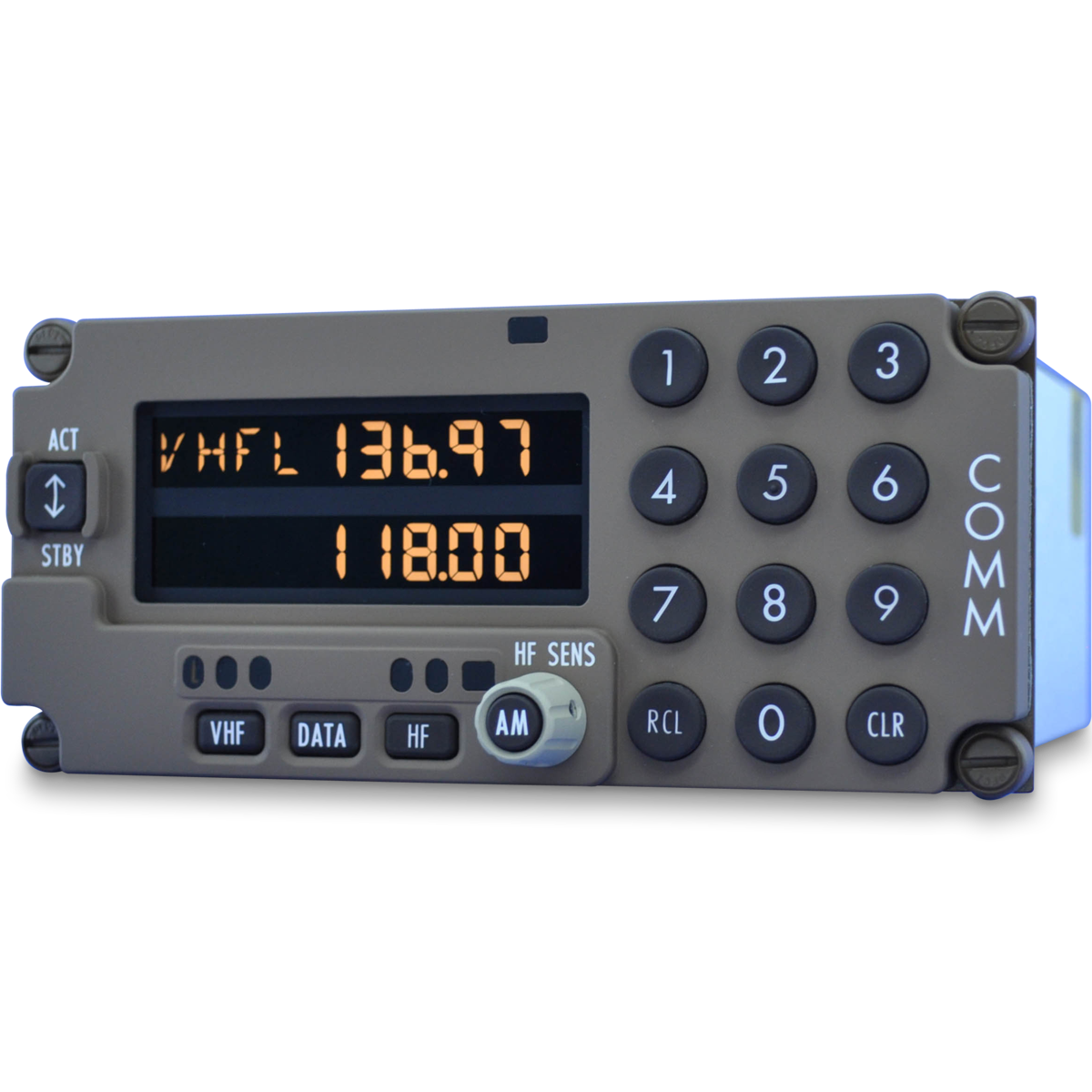

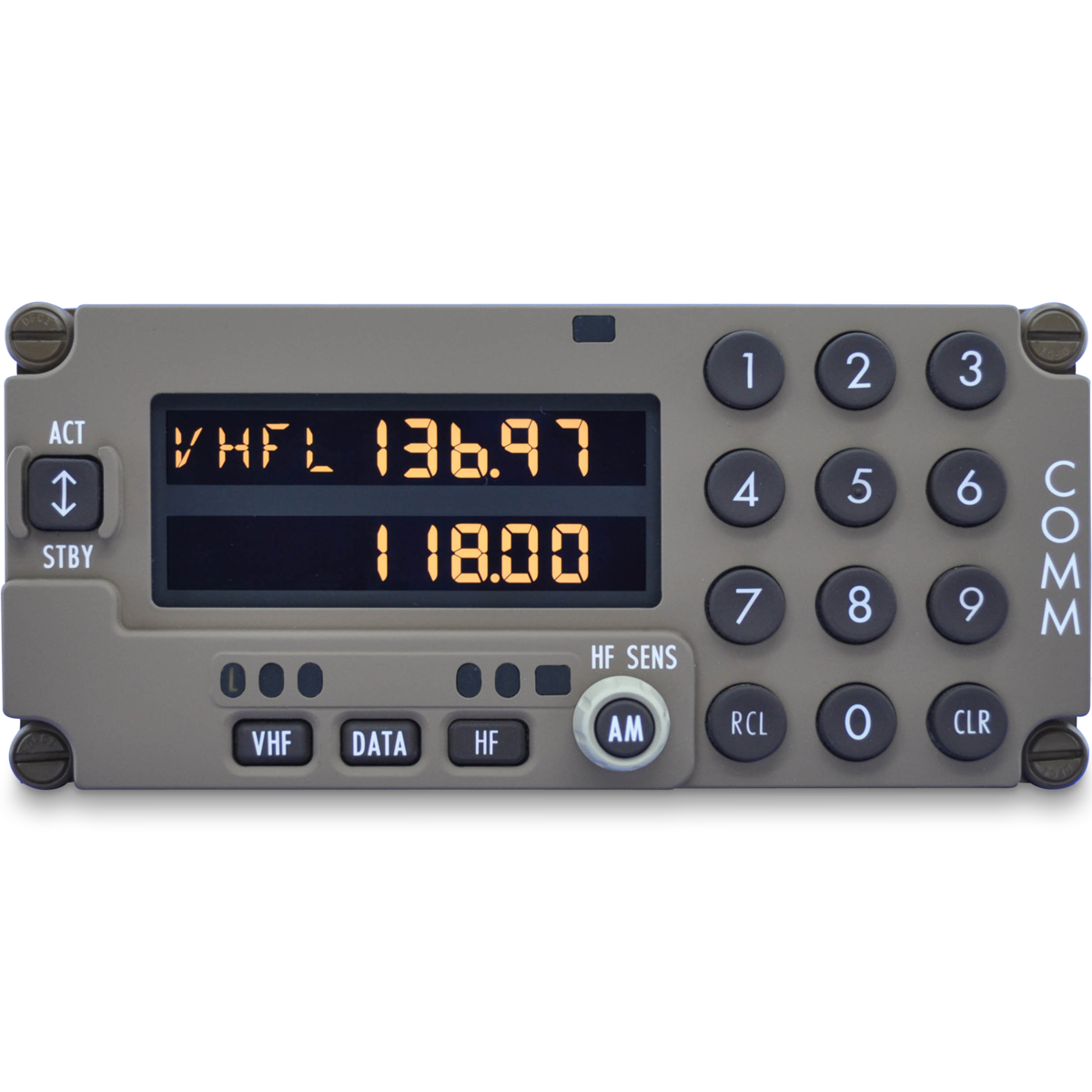

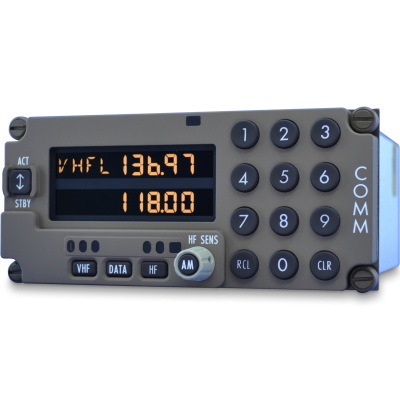

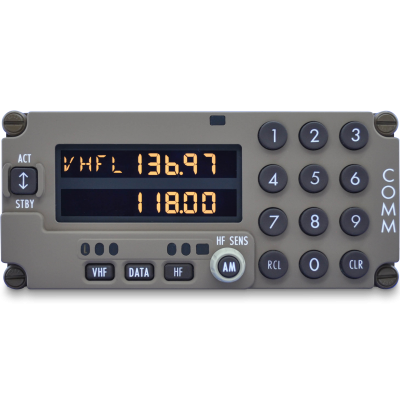

The Gables G7424-01 Radio Tuning Panels offer keyboard frequency entry for VHF and HF tuning.  The RTP is offerable as Supplier Furnished Equipment on the B747-8 via Rockwell Collins. For non-B747-8 aircraft, the G7424 can be installed via third party STC.

G7424-01 Data Sheet



SKU: G7424-() Category: Tag:

Description

  • 8.33 kHz capable
  • Frequency/channel keypad entry
  • Frequency/channel cross tuning
  • VHF and HF radio status monitoring
  • VDL Modes 0, A, 2 capable
  • Voice mode protection capable
  • VHF 2/3 data capable
  • VHF COMM test
  • VHF 3, HF 1, HF 2 absent discretes
  • Cross side radio tuning indication
  • Dual HF data link capable
  • Dual HF RF sense control
  • HF AM/SSB modulation control
  • HF 0.1 kHz spacing capable
  • High contrast LED backlit LCD
  • Non-volatile storage of front panel settings
  • Built-in-test (BIT)
  • Modular construction contributes to economical maintenance Liquid spill-proof design
  • Reliable switch design (one million actuations)
  • White LED display and panel lighting for higher reliability
