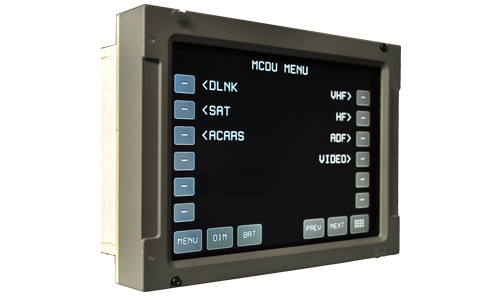

TouchDU

Configurable flight deck solution for a wide variety of aircraft  4 ARINC 429 inputs and 11 discrete inputs
3 ARINC 429 outputs and 4 discrete outputs
1 RS-232 input port and 1 output port (maintenance port)

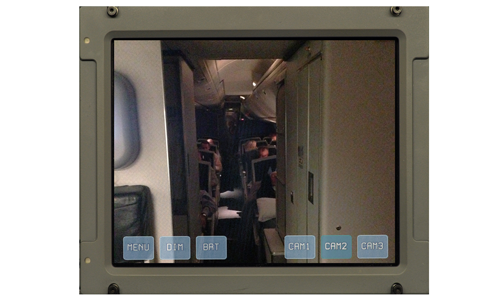

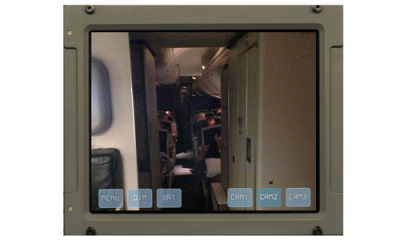

3 video inputs (variant dependent)

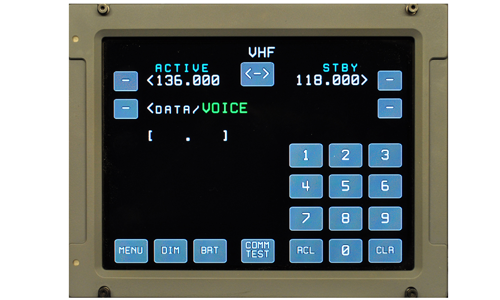

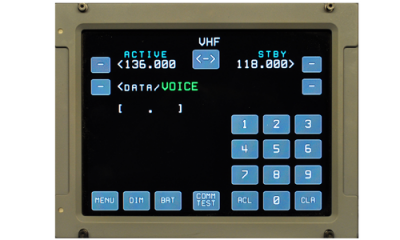

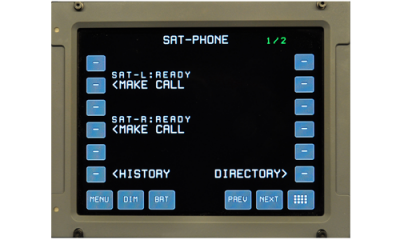

VHF, HF, ADF radio tuning (variant dependent)
DO-178B certifiable reconfigurable display software platform
Subpixel anti-aliasing for exceptional image quality
Built-in-test (BIT) with maintenance pages for enhanced diagnostics  Modular construction contributes to economical maintenance
Liquid splash-proof design
LED backlighting for higher reliability
Ambient light sensors
MTBF (Calculated): 20,000 operating hours

Dimensions	4.500 (height) x 5.735 (width) x 2.500 (max depth) inches, excluding rear connector
Colors	Boeing Brown BAC #8328 Non-reflective Gray FED STD 595b36118 Non-reflective Black FED STD 595b37038
Compliance	RTCA/DO-160G (Environmental), RTCA/DO-178B Level C (Software), RTCA/DO-254 Level C (Hardware) ARINC 429, ARINC 739A
Certification	TSO-C41d, TSO-C113a, TSO-C169a, TSO-C170
Weight	2.8 pounds (max)
Calculated MTBF	20,000 operating hours
Power	Power – 115 VAC or 28 VDC, 14 Watts (max) Lighting(LEDs) – 5V AC/DC variable Minimal current required –only used for brightness level monitoring
Display	Resolution – VGA -640 (W) x 480 (H) Screen size (diagonal) – 5.7 inches Pixel configuration – R,G,B stripe Luminance – 120foot Lamberts, LED lighting Viewing angle – +/-80 degrees (horizontal), +80/-60 degrees (vertical) Contrast ratio – 500:1 (typical) Touch screen – 5-wire resistive, GFG construction
