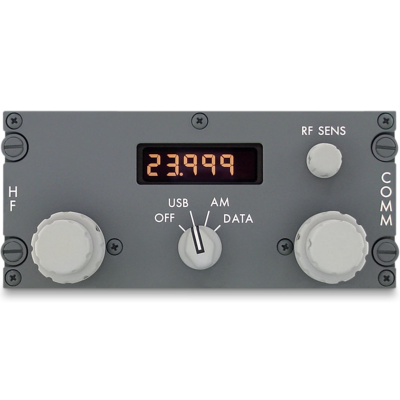

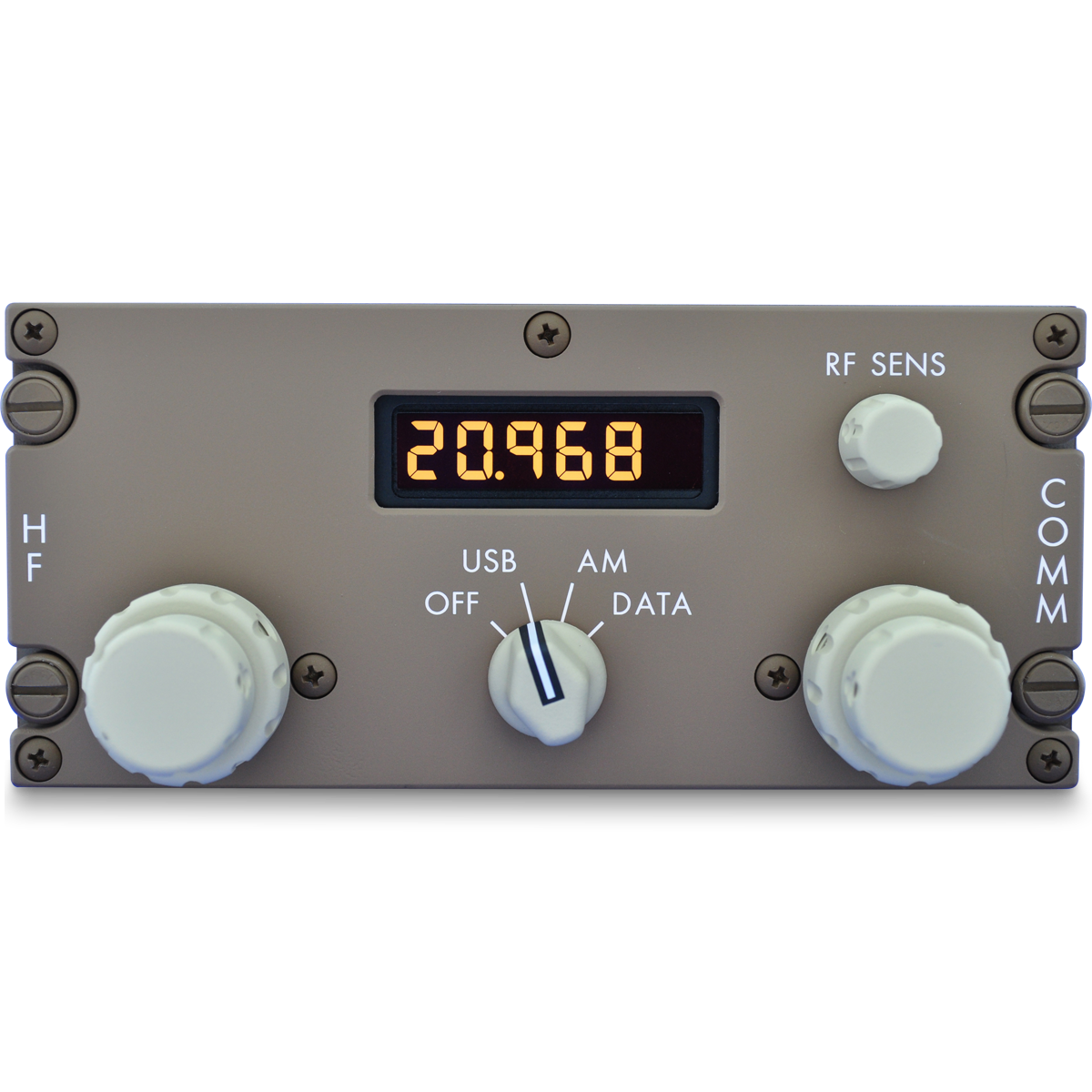

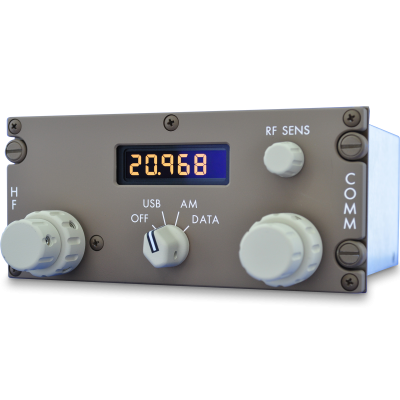

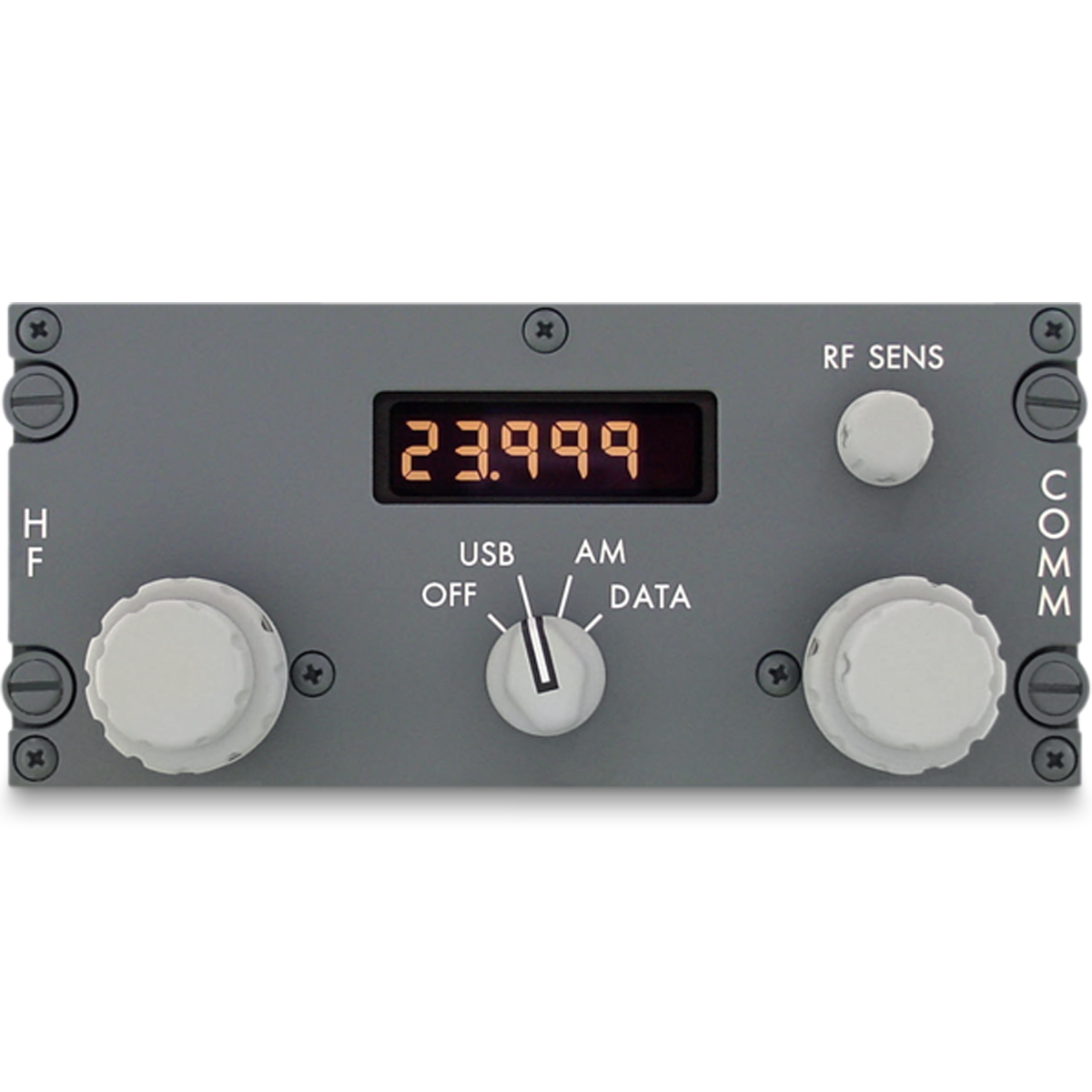

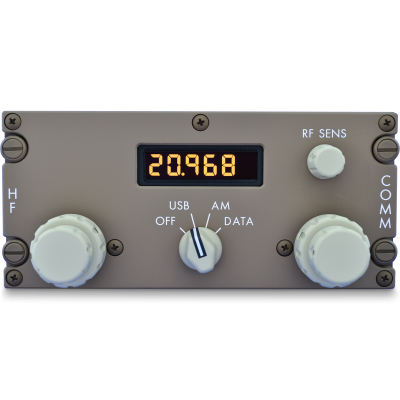

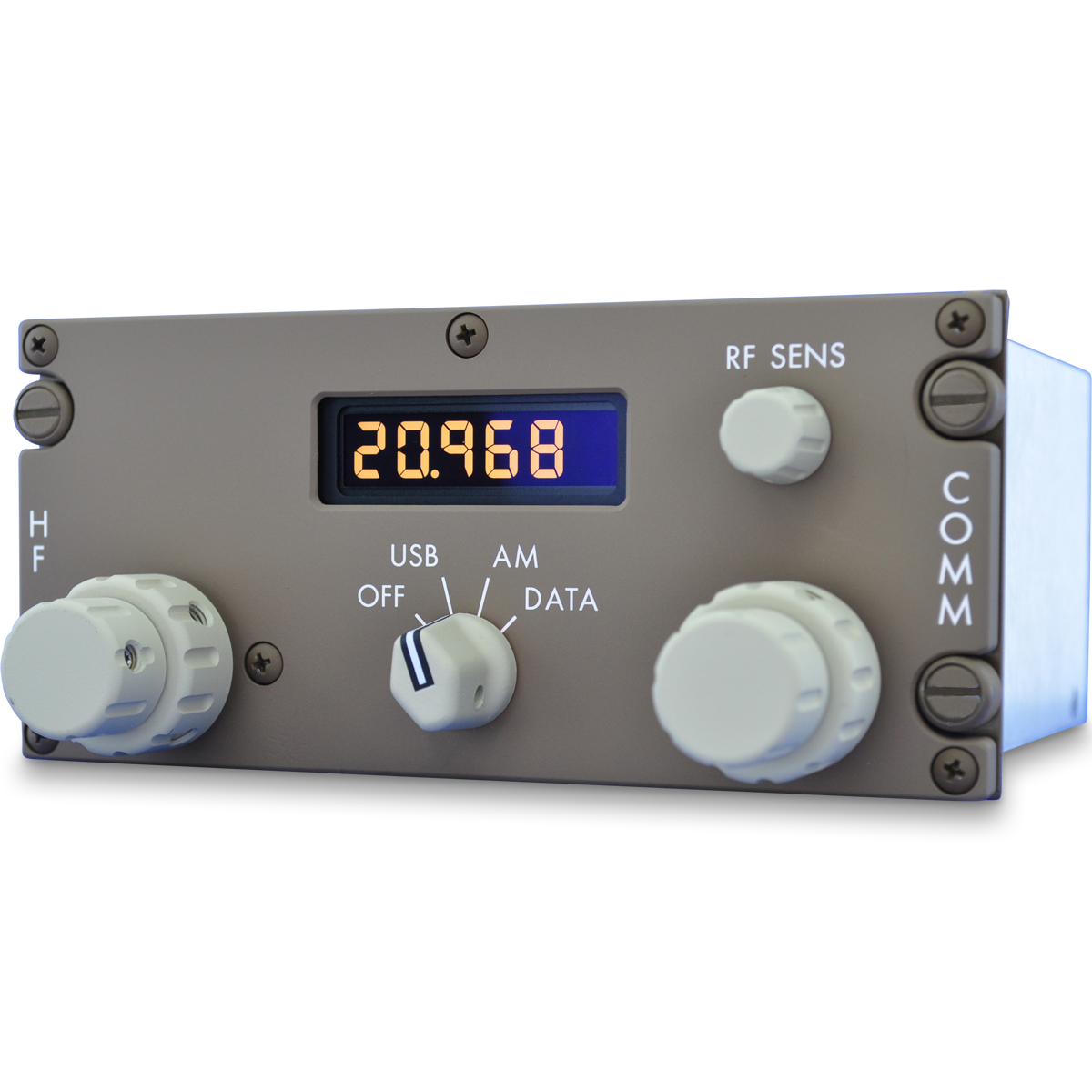

Gables HF Control Panels are certified on B737-NG and B767 aircraft. Third party STC’s are also available for out-of-production airframes.
HF Comm Tuning
Description
- Bezel Color (Black, Brown, Gray, Blue Gray)
- HF SENS 0.1 kHz frequency spacing capability
- HF datalink capable DATA capable
- Liquid spill-proof design
- Built-in-test(BIT) capability
- Non-volatile storage of front panel settings
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
Additional information
| Dimensions | 2.610 (height) x 5.735 (width) x 5.0 (depth)inches,excluding rear connector |
|---|---|
| Colors | Black, Brown, Gray, Blue/Gray |
| Compliance | RTCA/DO-160C (Environmental), RTCA/DO-178B (Software), RTCA/DO-163 (HF COMM) ARINC 429, ARINC719, ARINC 753 |
| Certification | TSO-C31d, TSO-C32d |
| Weight | 2 lbs. max |
| Calculated MTBF | 25,000 operating hours |
| Frequency Range | Default HF frequency range is 2.8 to 23.999MHz (23.9999 if 0.1 kHz spacing is selected). Optional frequency range is 2.0 to 29.999 MHz (29.9999 if 0.1 kHz spacingis selected). |
