The Gables G7501-01 is certified by Boeing for installation on the B737-NG and the 737-MAX.

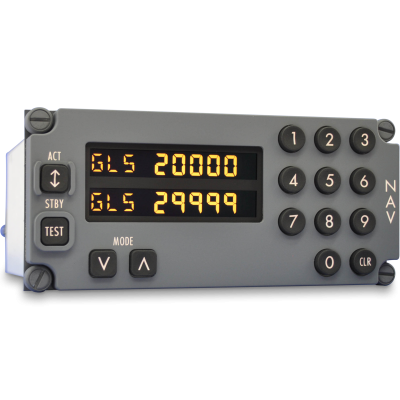

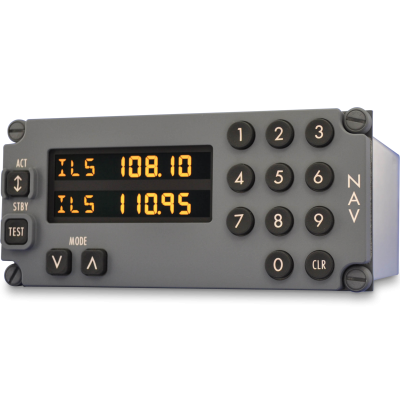

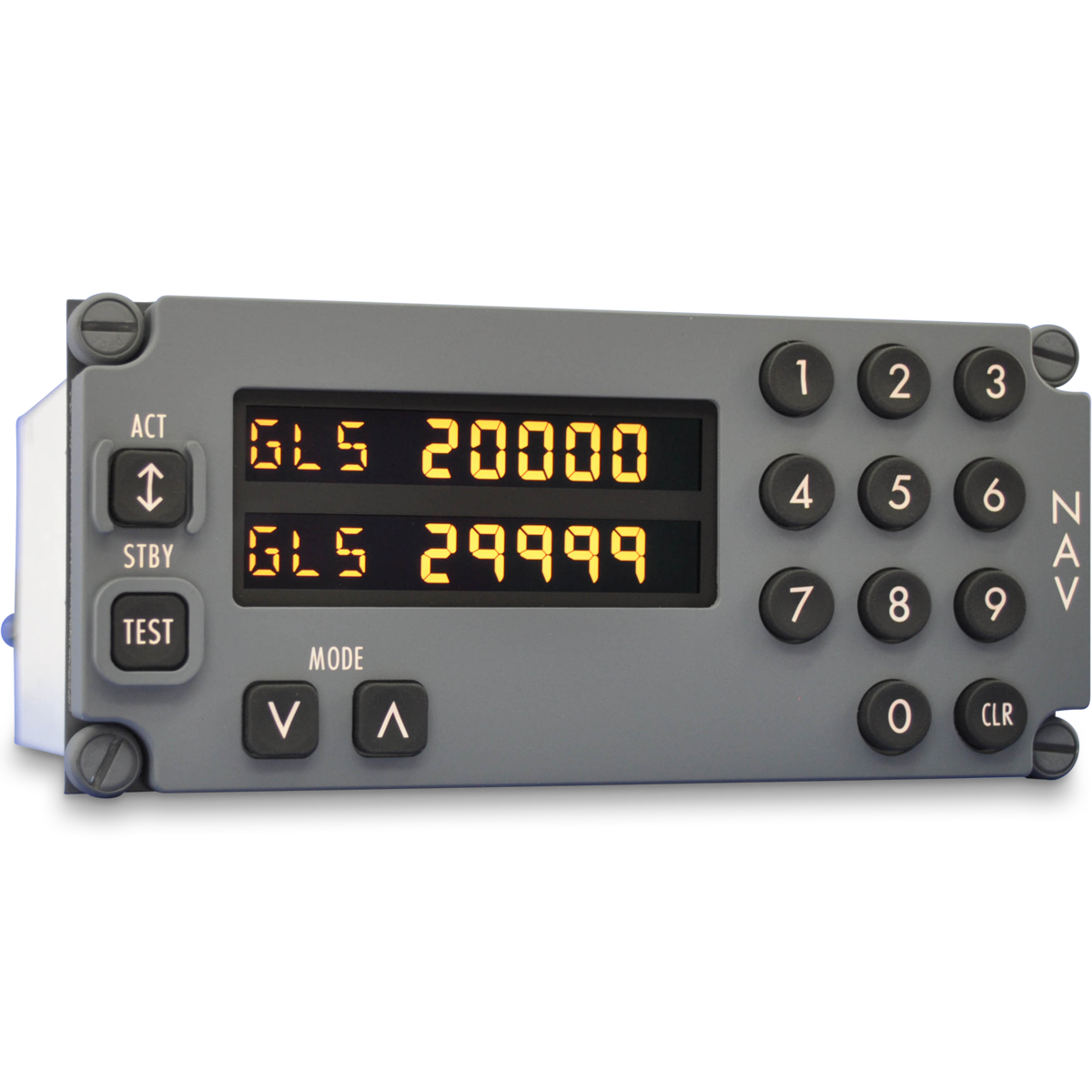

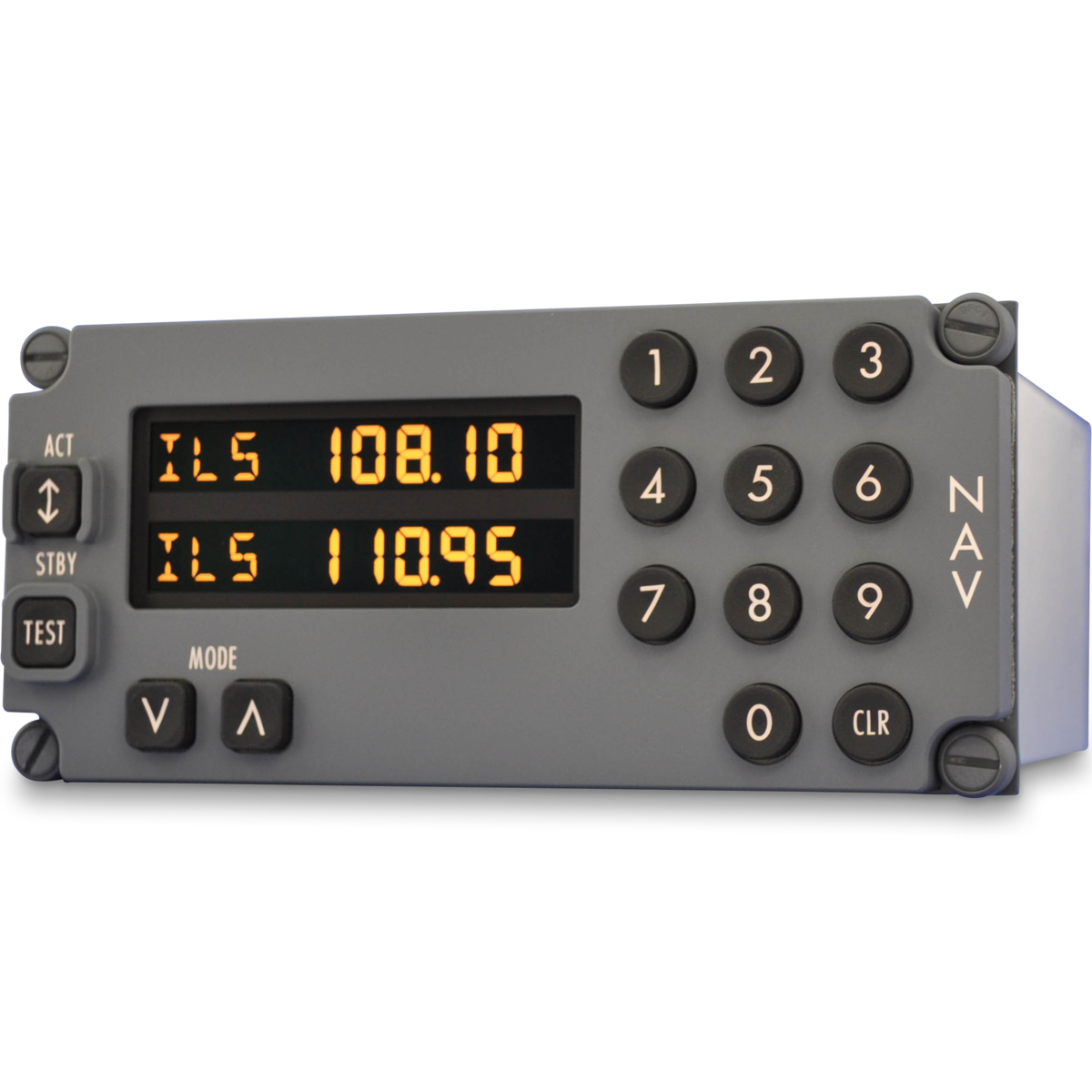

B737 Nav GLS
Description
- Provides tuning control of VOR, ILS, DME, MLS and GLS
- Provides internal fault monitoring and recording capability
- Liquid spill-proof design
- Reliable switch design (one million actuations)
- White LED display and panel lighting for higher reliability
- Built-in-test (BIT) capability
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
- MTBF (Calculated): 22,000 operating hours
Additional information

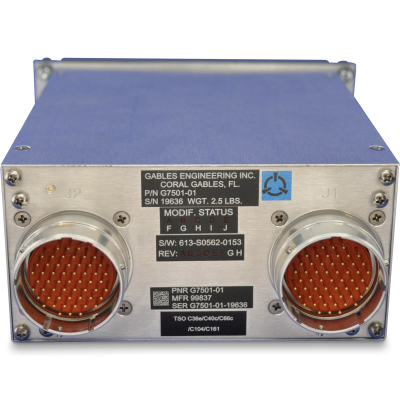

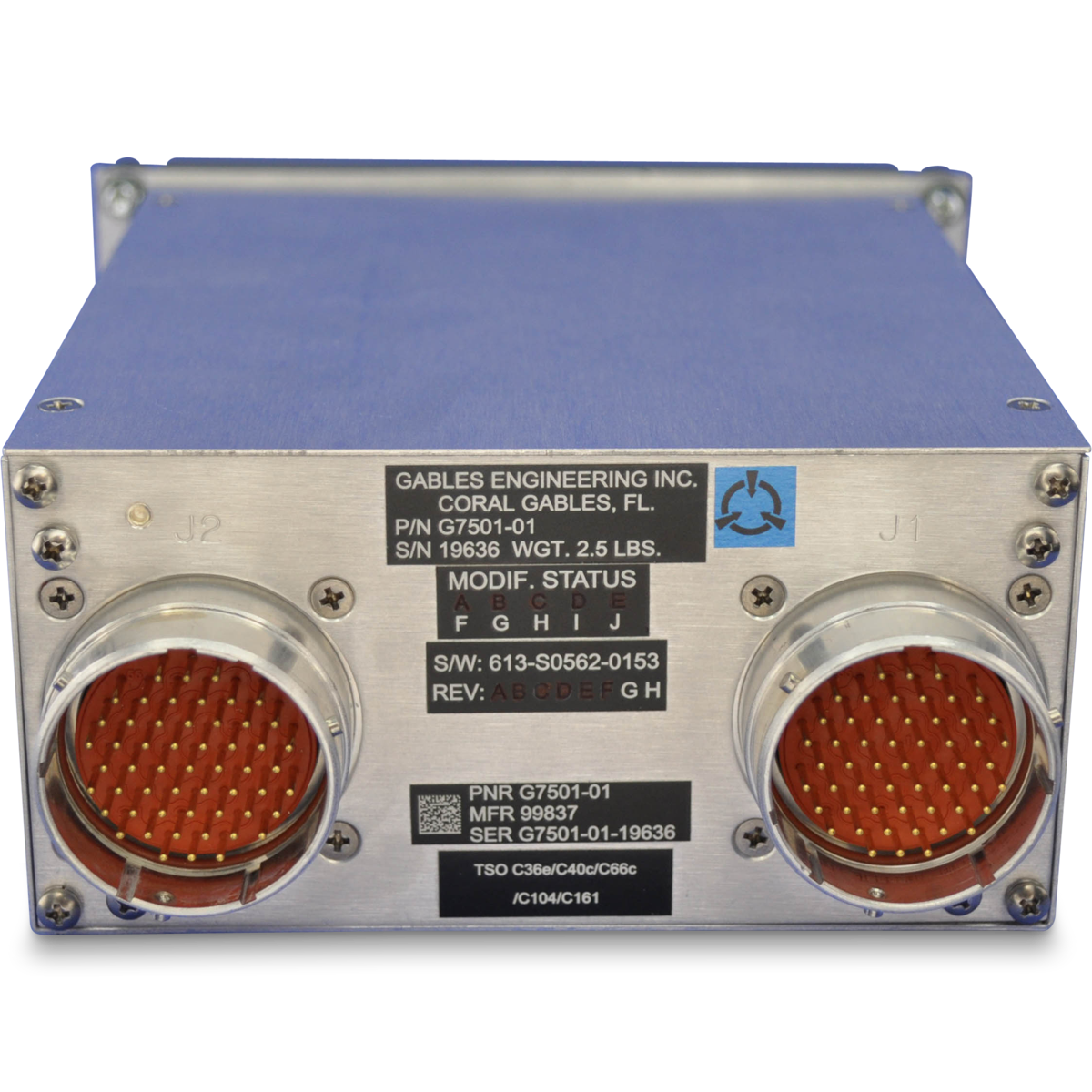

| Dimensions | 2.610 (height) x 5.735 (width) x 5.5 (depth) inches, excluding rear connectors |
|---|---|
| Weight | 2.5 pounds (max) |
| Frequency Range | GLS – 20,000 to 99,999, ILS/VOR (VHF NAV) – 108.00 MHz to 117.95 MHz, MLS – 500 to 699 |
| Power | Power – 115VAC@400Hz. 4w max, Panel & LCD Lighting 0-5VAC variable (LED) |
| Connectors | J1 Mating: BACC63CB22-55SN, or equivalent 55 pin connector, J2 Mating: BACC63CB22-55S8, or equivalent 55 pin connector |
| Color | Front Panel – Non-reflective Gray FEDSTD 595b36118, Front Panel Markings –White FEDSTD 595b37875 (FuturaMediumfont), Push Buttons – Non-reflective Black FED STD 595b37038 |
| Compliance | ARINC 429, ARINC 709, ARINC 710, ARINC 711, ARINC 720, ARINC 727, ARINC 755, Boeing D6-38859-1, Boeing D6-52191-1 Rev B, RTCA/DO-160D (Environmental), RTCA/DO-178B (Software) |
| Certification - Aircraft | B737-MAX, B737-NG |
| Certification - Regulatory | TSO-C36e, TSO-C40c, TSO-C66c, TSO-C104, TSO-C161 |
| Calculated MTBF (op hours) | 22,000 |
