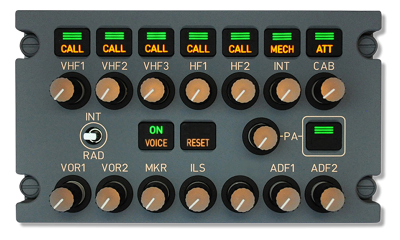

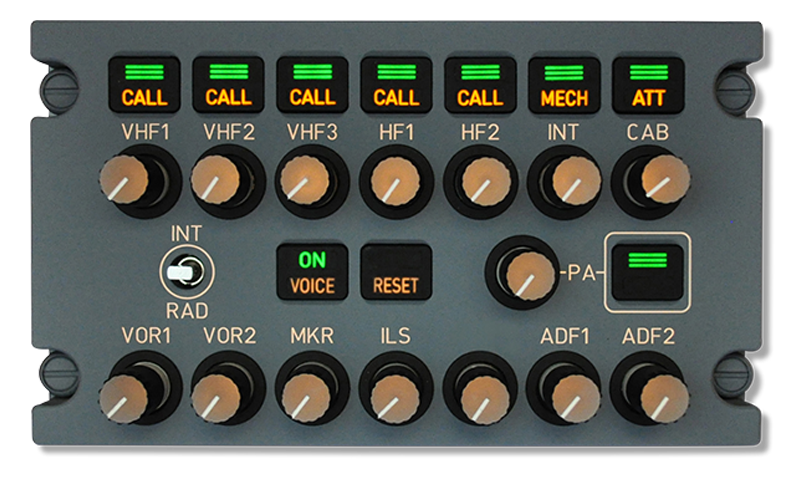

The G7461 family of Audio Control Panels interface with the Cobham AMU2790. The G7461 is interchangeable and intermixable with Cobham ACP’s shown in the the table below.
FAA TSO approved.
STC is available.
| Gables | Cobham | Features |
|---|---|---|

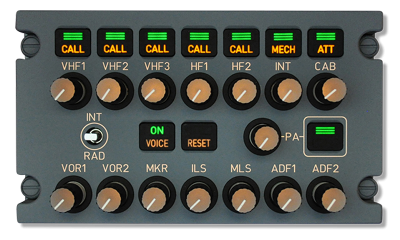

| G7461-01 | ACP2788AA/AB | Full Configuration |
| G7461-02 | ACP2788AC | Removes MLS legend |
| G7461-03 | ACP2788B05/AD | Removes MLS, LS instead of ILS |
Interfaces to Cobham AMU2790
Liquid spill-proof design
Reliable switch design (>1 million actuations)
Volume controls and toggle switches securely fastened to front metal
LED lighting
Sun-light readable MIC selector indication
Built-in-test (BIT)
Flash technology to support bench-level reprogramming using a PC
Non-volatile storage of front panel settings
Modular design provides flexibility for custom layouts
Modular construction allows economical maintenance
MTBF (calculated): 25,000 operating hours
Multiple front panel functions/control panel configurations availiable (see table below)
