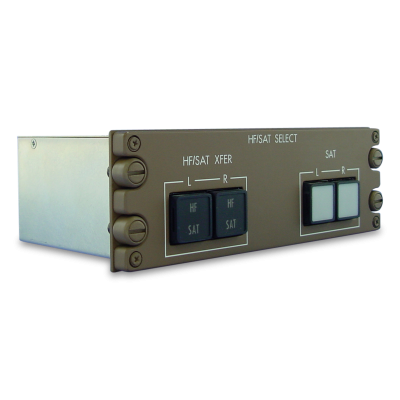

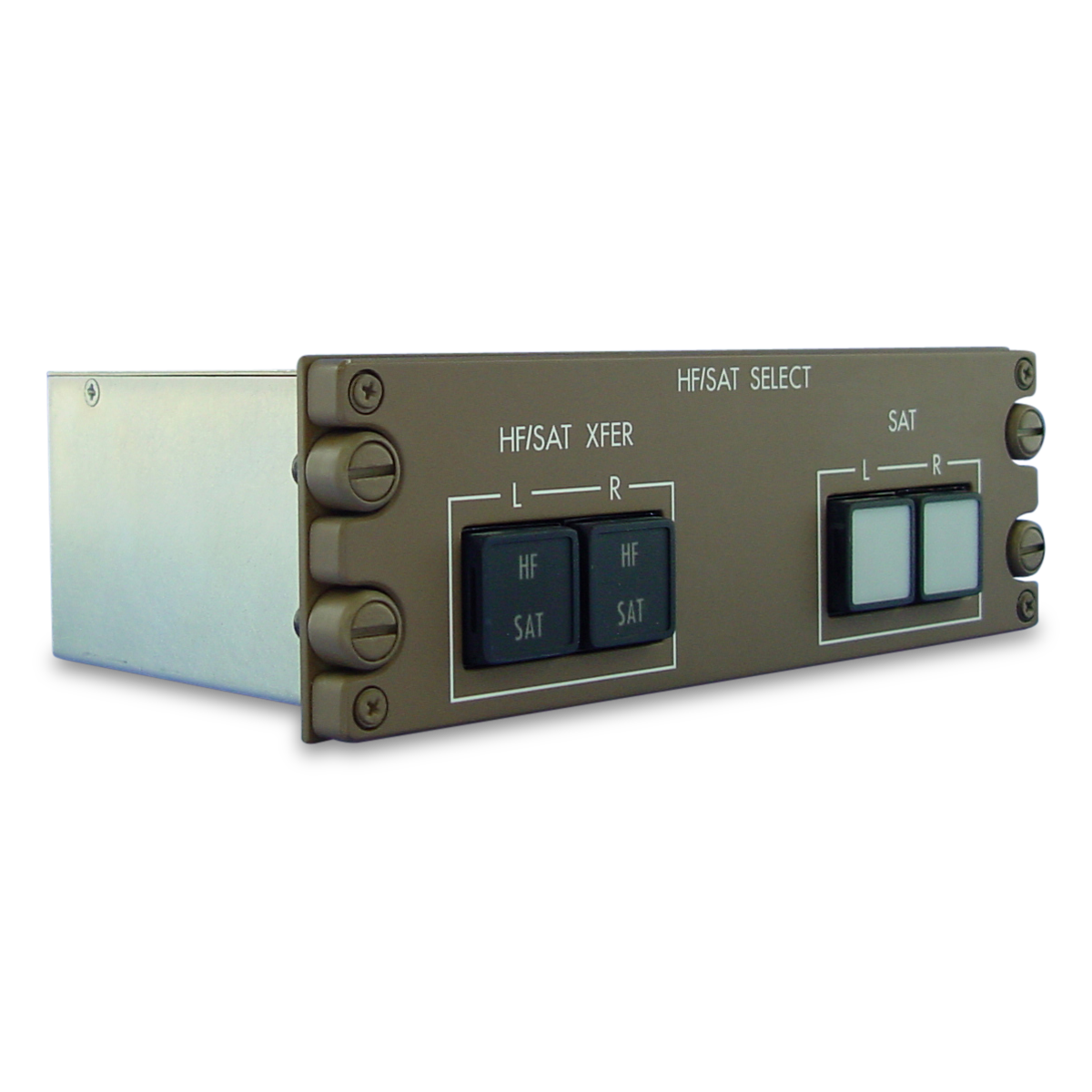

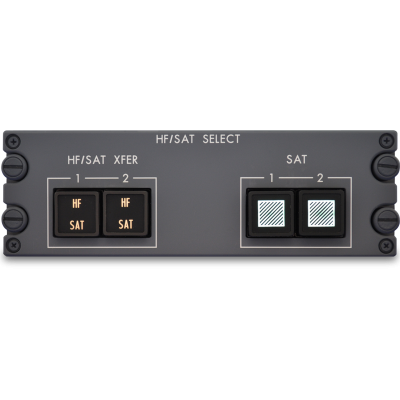

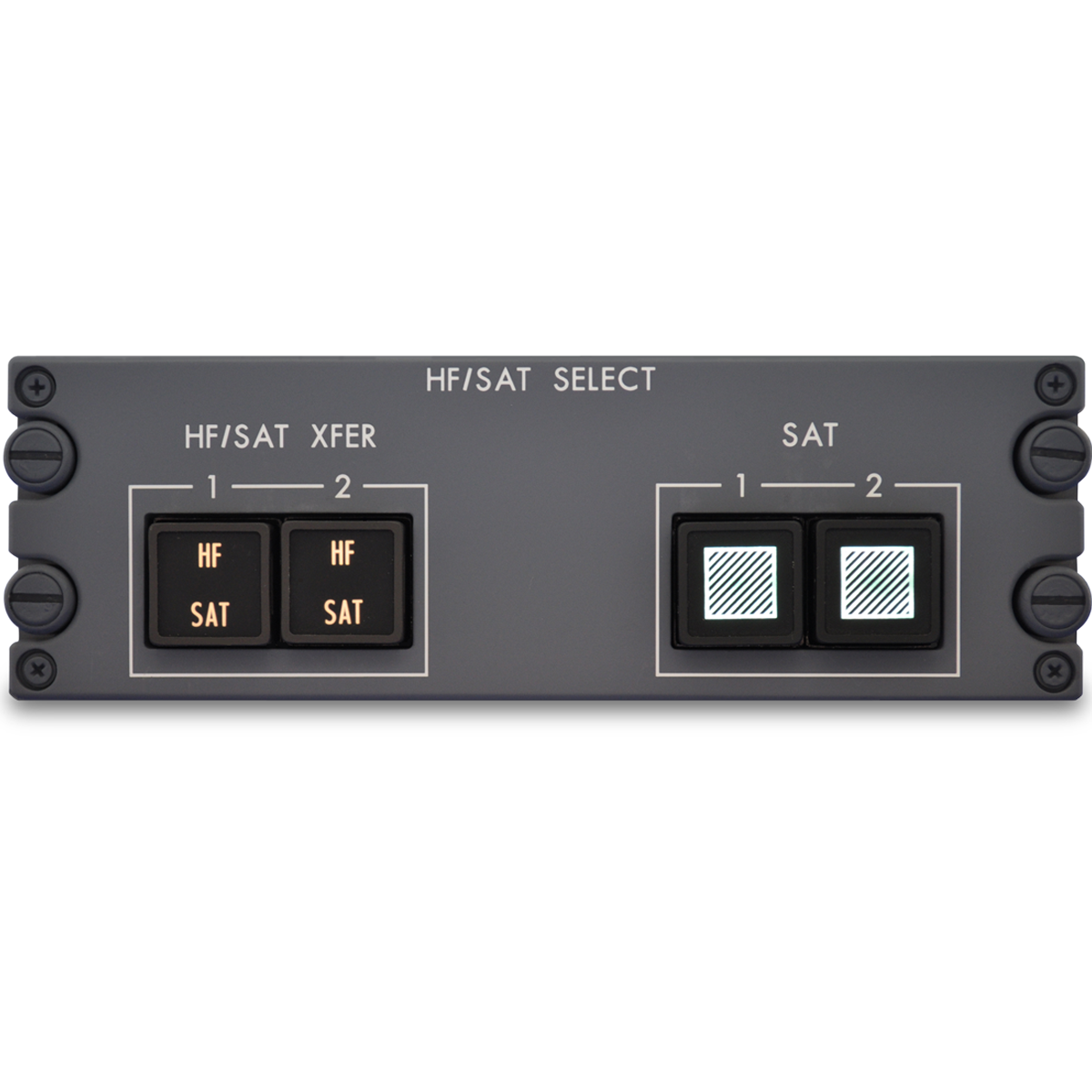

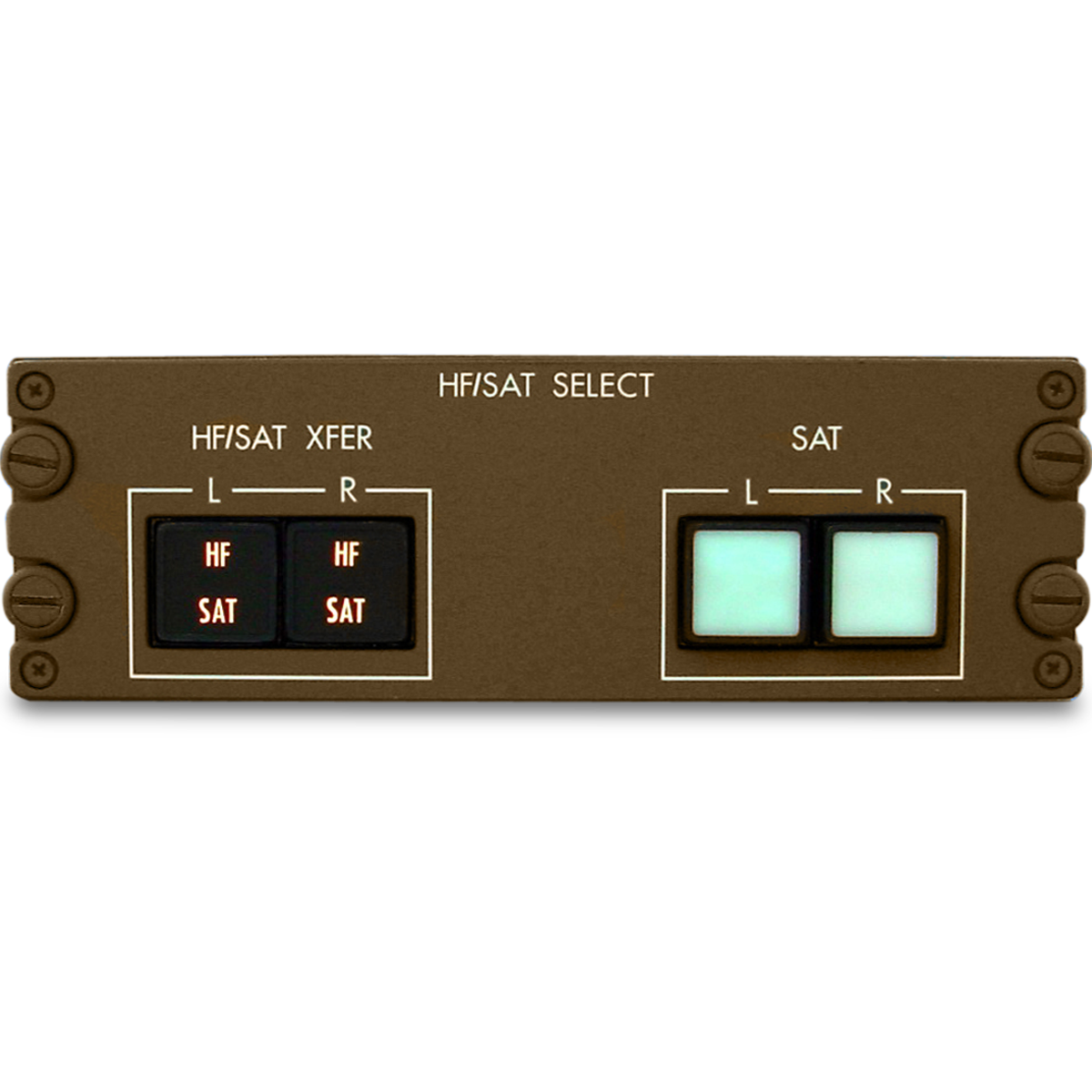

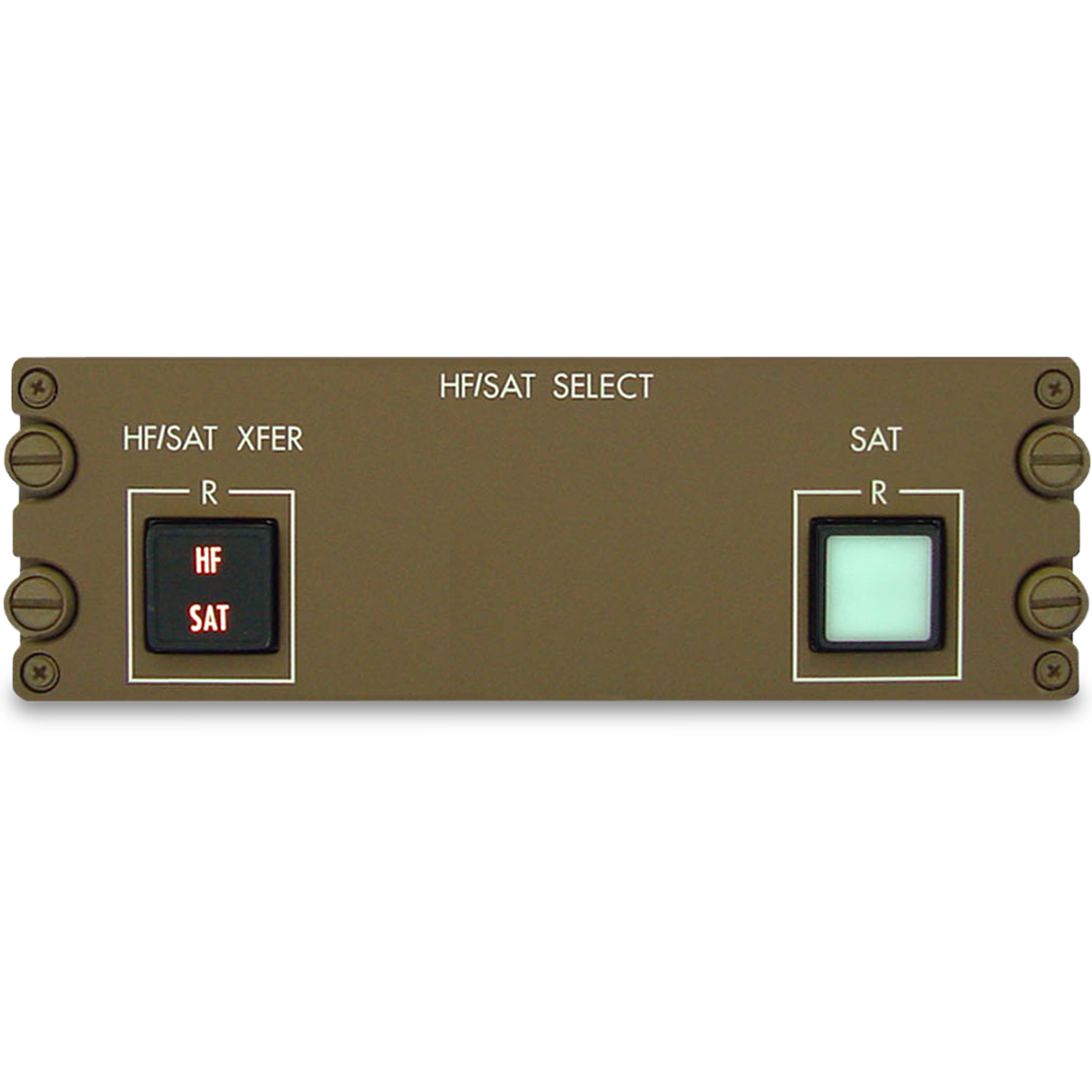

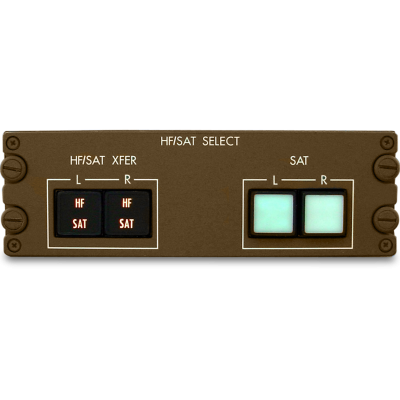

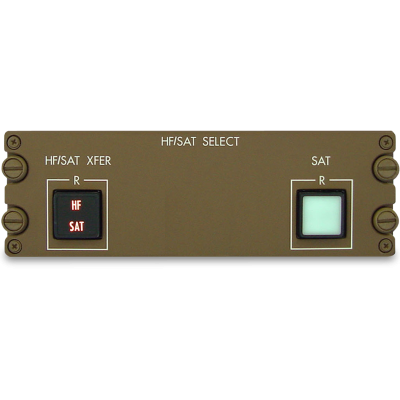

Gables' G7164 HF/SAT Annunciator Panel is an economical alternative when adding Satcom voice to the flight deck. The panel allows the existing audio control panel to remain by splitting the existing HF channels with the new Satcom channels. The G7164 is available in a single or dual channel configuration and choice of color. STC's are available by many third parties. For more information, consult the data sheet or contact us.
HF/SAT Select
Description
- Economical alternative to retain existing audio control panel for Satcom voice
- Alternate configurations available for other aircraft installations and number of SAT channels (see table below)
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
Additional information
| Dimensions | 1.860 (height) x 5.735 (width) x 3.0 (depth) inches, excluding rear connector |
|---|---|
| Color | Boeing Gray, Boeing Brown, Airbus Blue/Gray |
| Compliance | RTCA/DO-160C (Environmental) |
| Weight | 1.0 lbs. |
| Certification - Aircraft | PMA on various aircraft models |
| Connectors | J1 Mating: MS24266R14B15S6 or equivalent 15 pin connector |
| Power | 26.5/12 VDC, 7.5 Watts (max), Indicator Lighting 26.5/12 VDC (-01, -03, -06, -07) 3/5VAC (-05), Panel Lighting 5VAC variable |
