The SATVOICE Annunciator Panel offers more than 12 configurations.
FAA TSO Approved
STC is available for Boeing 737-700/-800/-900/-900ER Series, 737 MAX-8, 737 MAX-9

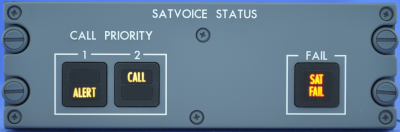

SATVOICE Annunciator Panel
Description
- SATVOICE Call Priority Annunciation
- Indicators can be activated via ARINC 429 bus or ARINC 720 discrete signals
- Built-in ARINC 429 to ARINC 720 discrete converter
- J1 Mating: MS3126F16-26S, or equivalent 26 pin connector
- Configurable ARINC 429 bus speed (variant dependent)
– G7264-0X and -1X are low speed
– G7264-2X and -3X are high speed
