The G7116 Series ELT control is compatible with Artex, Honeywell and ELTA ELT's and are certified on the B737.
B737 ELT
Description

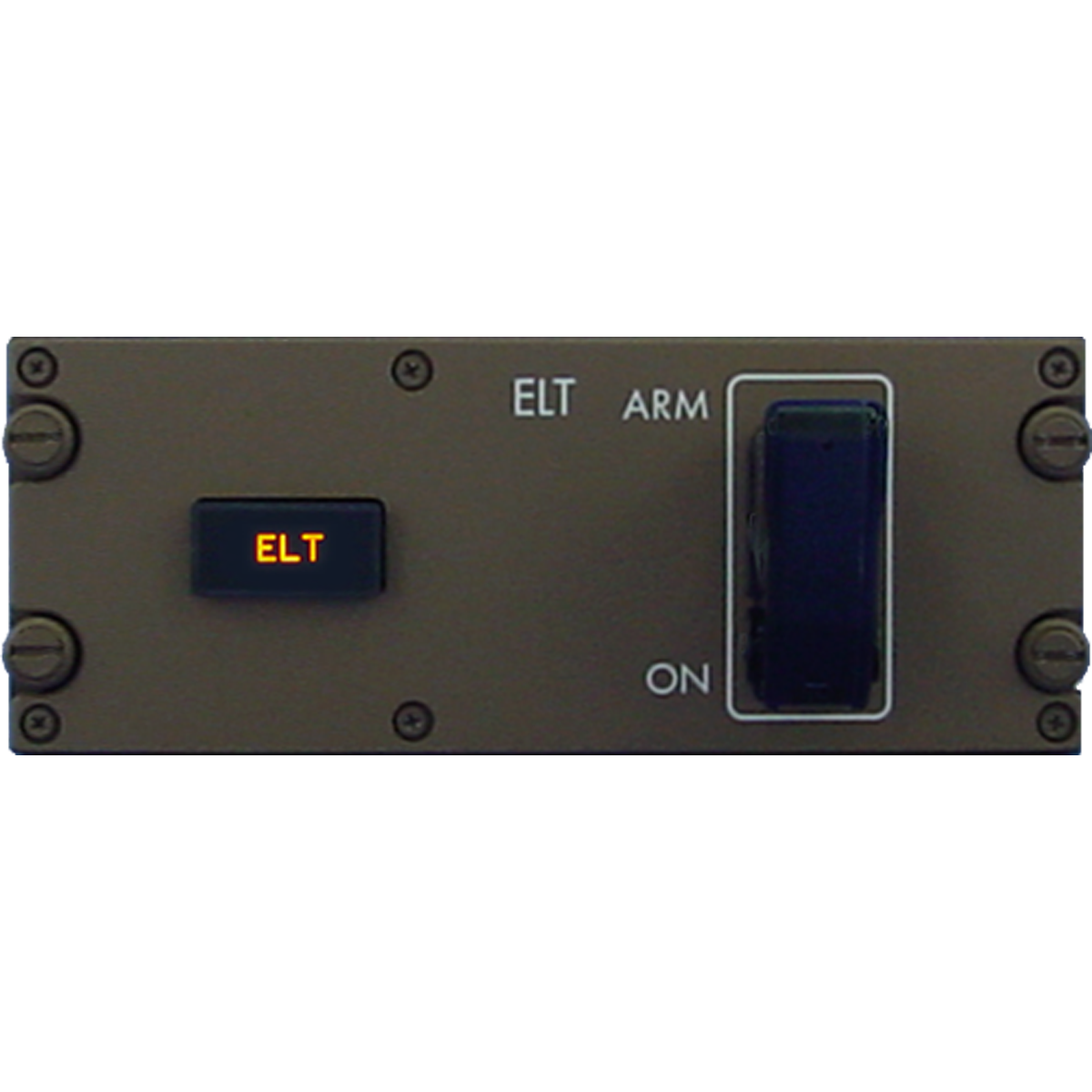

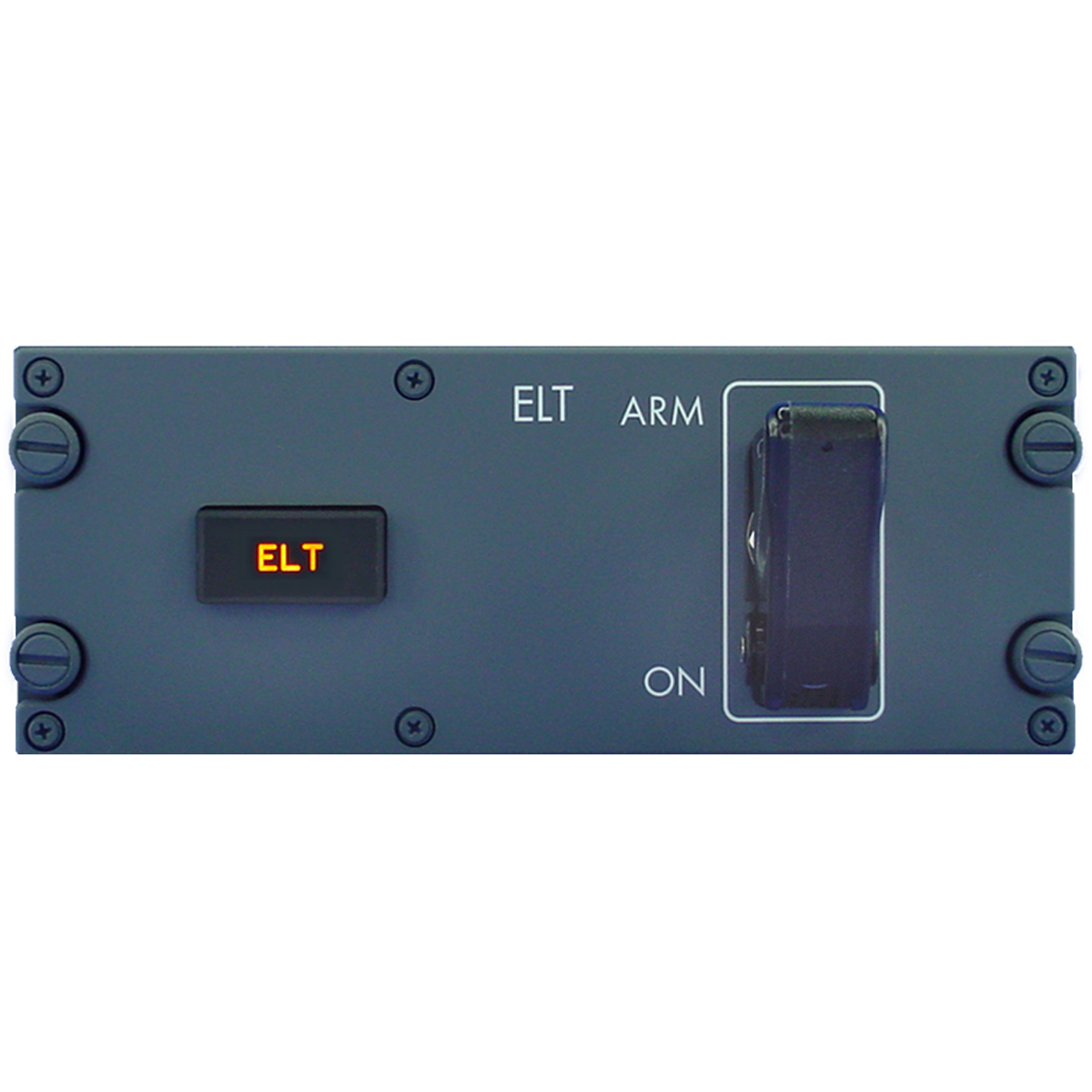

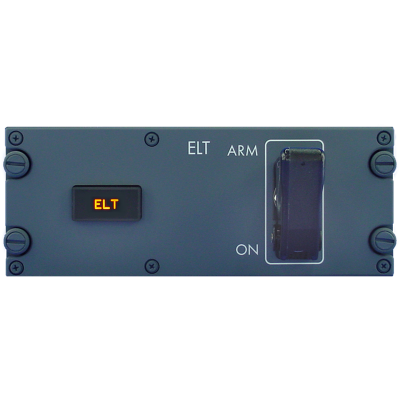

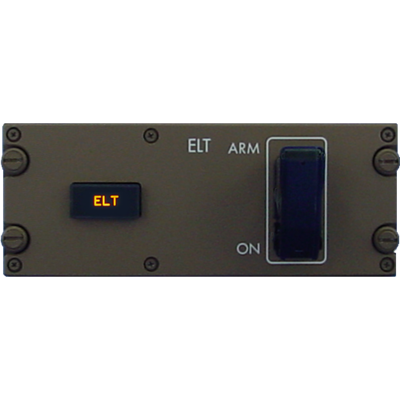

- ARM/ON Control Switch (G7116-01/-02/-05/-06) – compatible with Artex ELTs
- RESET/ARMED/ON Control Switch (G7116-04) – compatible with ELTA ELTs
- ELT Annunciator (Lamp Test)
- Activate and monitor ELT from cockpit
- Capable of performing ELT self test
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
Additional information
| Dimensions | 2.235 (height) x 5.735 (width) x 3.0 (depth) inches, excluding rear connector |
|---|---|
| Weight | 1.0 lbs. |
| Power | Power – 28VDC |
| Connectors | J1 Mating: MS24266R16B24S7, or equivalent 24 pin connector |
| Colors | Front Panel – Non-reflective Gray FED STD 595b36118 (G7116-01/-04) |
| Compliance | RTCA/DO-160C (Environmental) |
| Certification - Regulatory | TSO-C91a, C126 |
| Certification - Aircraft | B737-NG (-01, -04) |
| Calculated MTBF | 30,000 operating hours |
