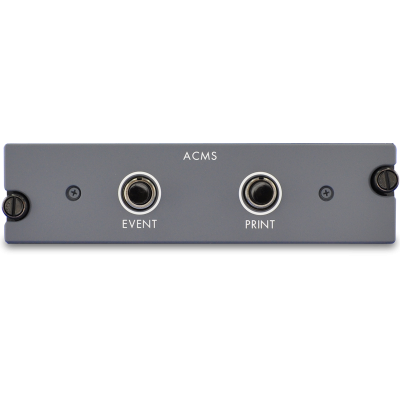

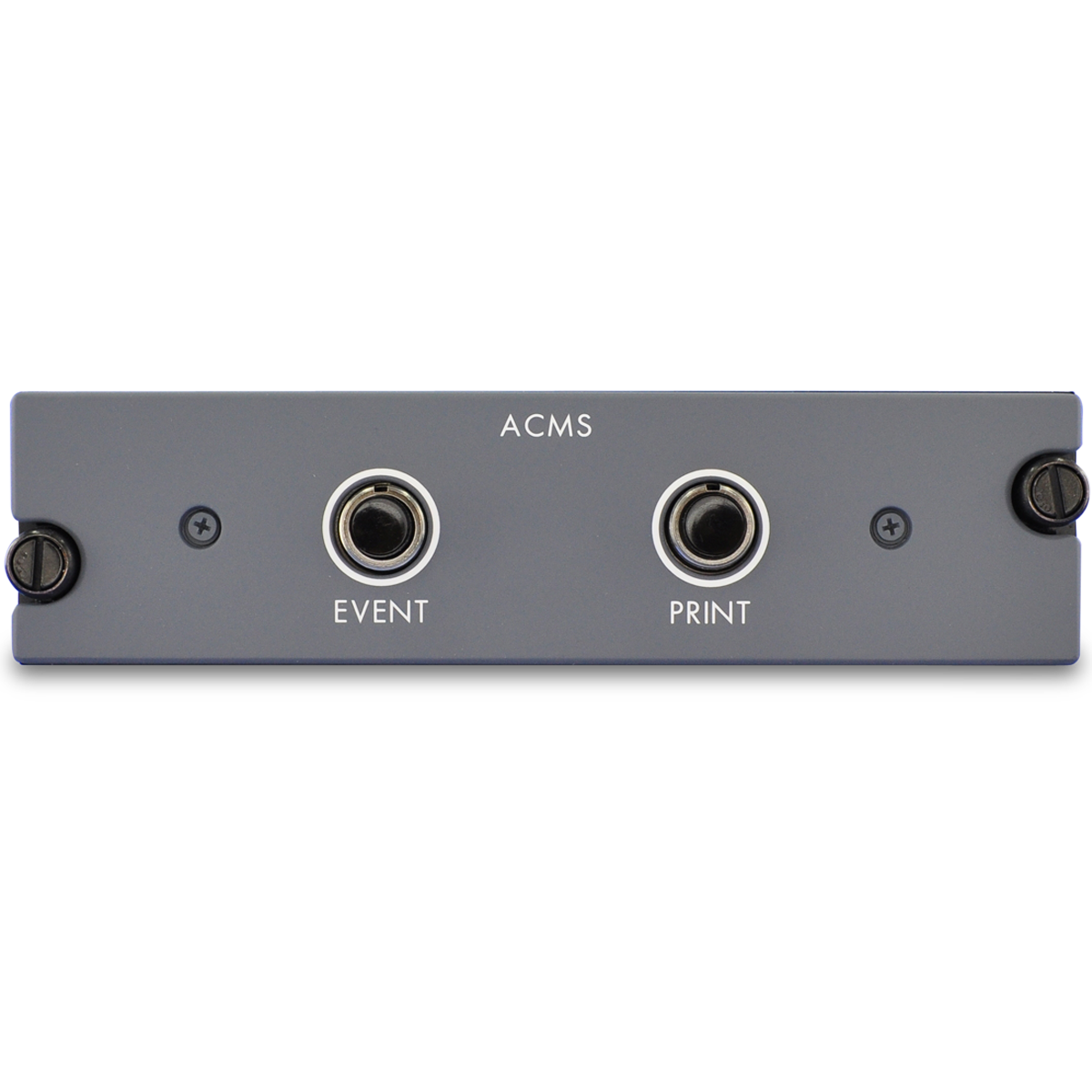

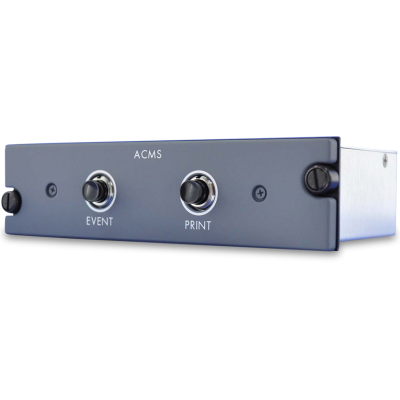

The G6986-01  ACMS control is certified on the B737.
B737 ACMS
Description
- LRU for Aircraft Condition Monitoring System (ACMS)
- Modular construction contributes to economical maintenance
Additional information
| Dimensions | 1.485 (height) x 5.735 (width) x 3.0 (depth) inches, excluding rear connector |
|---|---|
| Weight | .5 lbs. |
| Power | Panel Lighting – 5VAC variable |
| Connectors | J1 Mating: MS24266R12B12S, or equivalent 12 pin connector |
| Colors | Front Panel – Non-Reflective Gray FED STD 595b36118 |
| Certification - Aircraft | PMA B737-300/400, Type Certified on B737-600/700/800/900 |
| Calculated MTBF | 20,000 operating hours |
