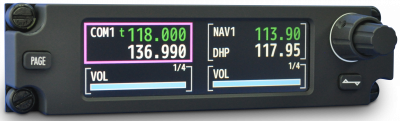

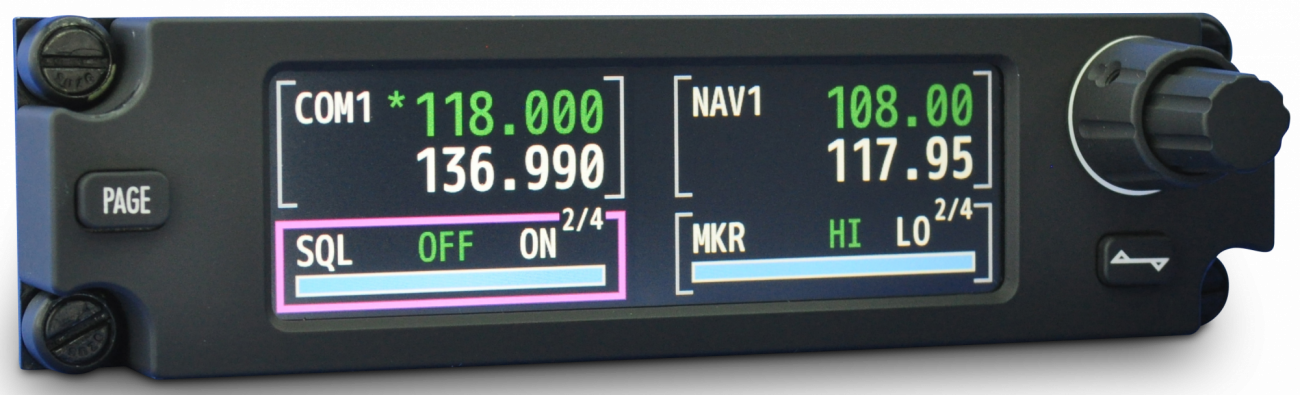

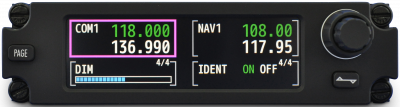

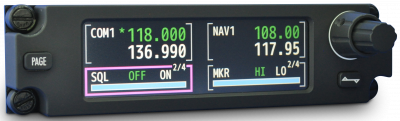

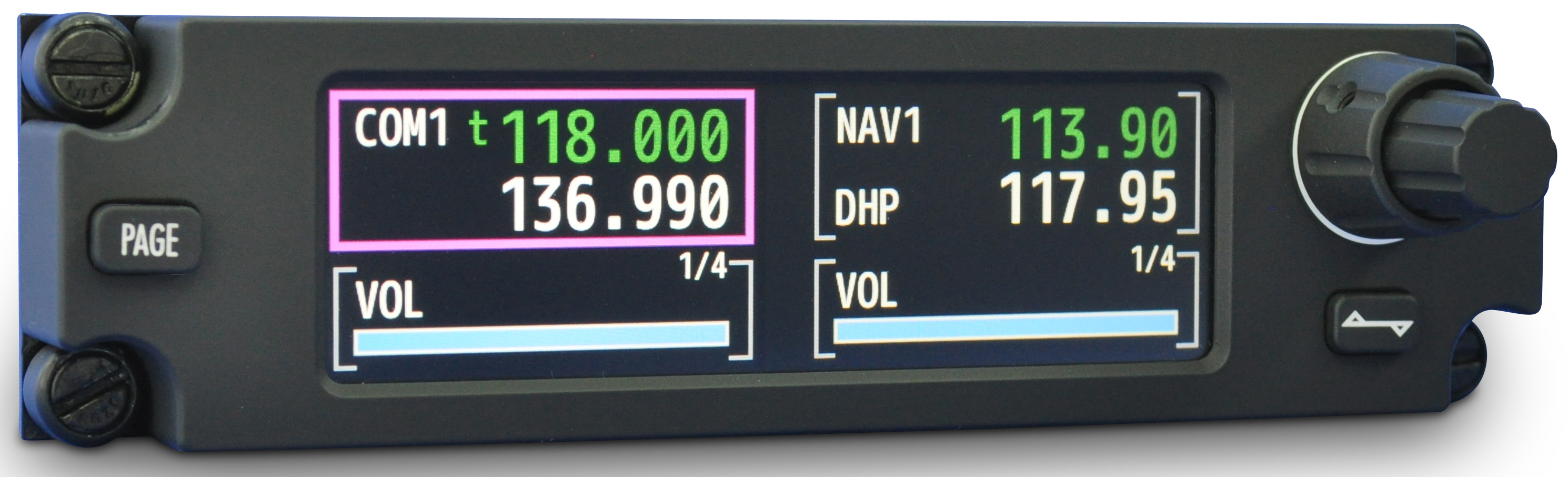

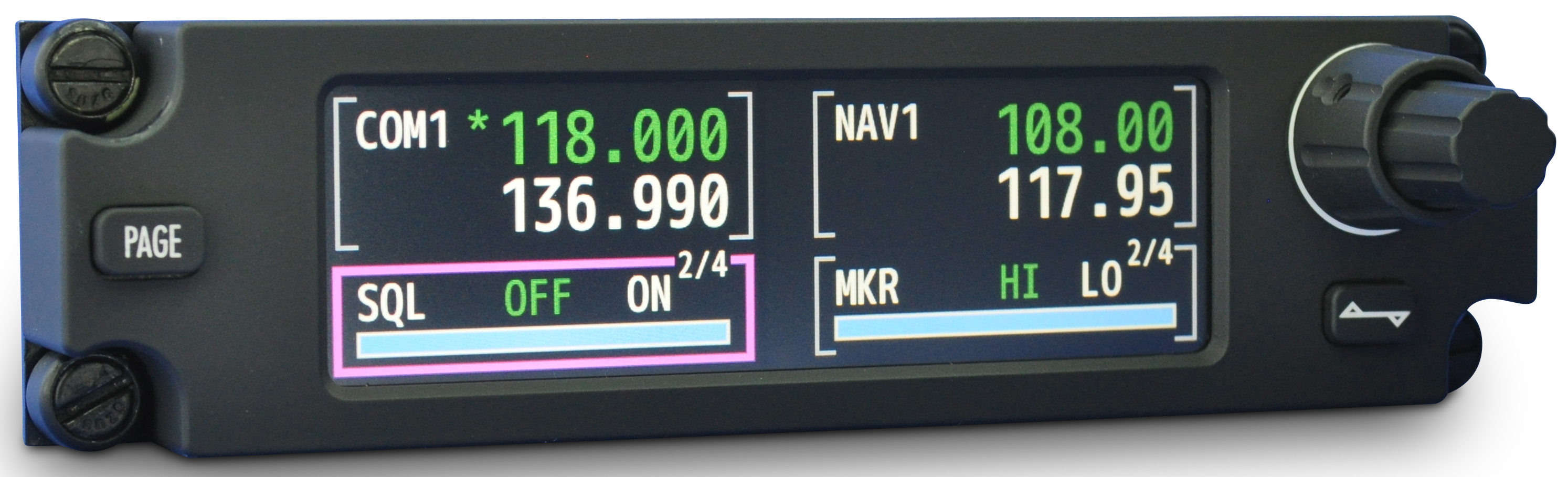

G7324-01

Touch Screen Radio Controller

The G7324-01 is a touchscreen controller that has the capability to select VHF & UHF COM channels, VOR/ILS channels, and Marker Beacon sensitivity for the Genesys Digital Radio (GDR) via RS-232.

This small 1.5 inch height, DZUS rail mounted, light weight panel is powered from 28 VDC with LED backlighting that can support either 0 – 5 VAC/DC or 0 – 28 VDC.

VOR / ILS tuning range is 108.00 to 117.95 MHz (50 kHz steps).

VHF COM tuning range is 118.000 to 136.990 MHz with selectable 8.33/25 kHz spacing for G7324-01

Guard frequencies for G7324-13 are VHF 121.500 MHz and UHF 243.000 MHz.

G7324 Touch Screen Radio Controller

SKU: G7324-01 Category: Tags: , , ,

Description

  • VHF COM Tuning Range is from 118.000 to 136.990 MHz using 25 kHz and 8.33 kHz spacing
  • NAV Tuning Range is from 108.000 to 117.950 MHz
  • Marker Beacon Sensitivity – High and Low
  • Passive, no forced air required
  • J1 Mating: MS3476L14-19S or equivalent 19 pin connector
  • Front Panel – Non-reflective Black FED STD 595b37038 or Non-reflective Gray FED STD 595b36118
  • Pushbuttons/Knobs – Non-reflective Black FED STD 595b37038
  • Front Panel Markings – White FED STD 595b37875 (Futura Medium Condensed font)

Features

  • Generic, reconfigurable, display controller
  • Supports Genesys GDR family of radios
  • Controls VHF COM, VOR, ILS and Marker Beacon
  • Touchscreen display
  • Rotary encoder with integrated pushbutton
  • Field programmable through RS-232 port
  • 2 RS-232 input / output ports
  • 4 ARINC 720 input / output discretes
  • LED backlighting for higher reliability
  • MTBF (Estimated): 20,000 operating hours
  • Configurable parameters include:
    • Marker
    • Volume
    • Squelch Level
    • Voice Ident Filter
    • DME Hold
    • RMT Annunciation
