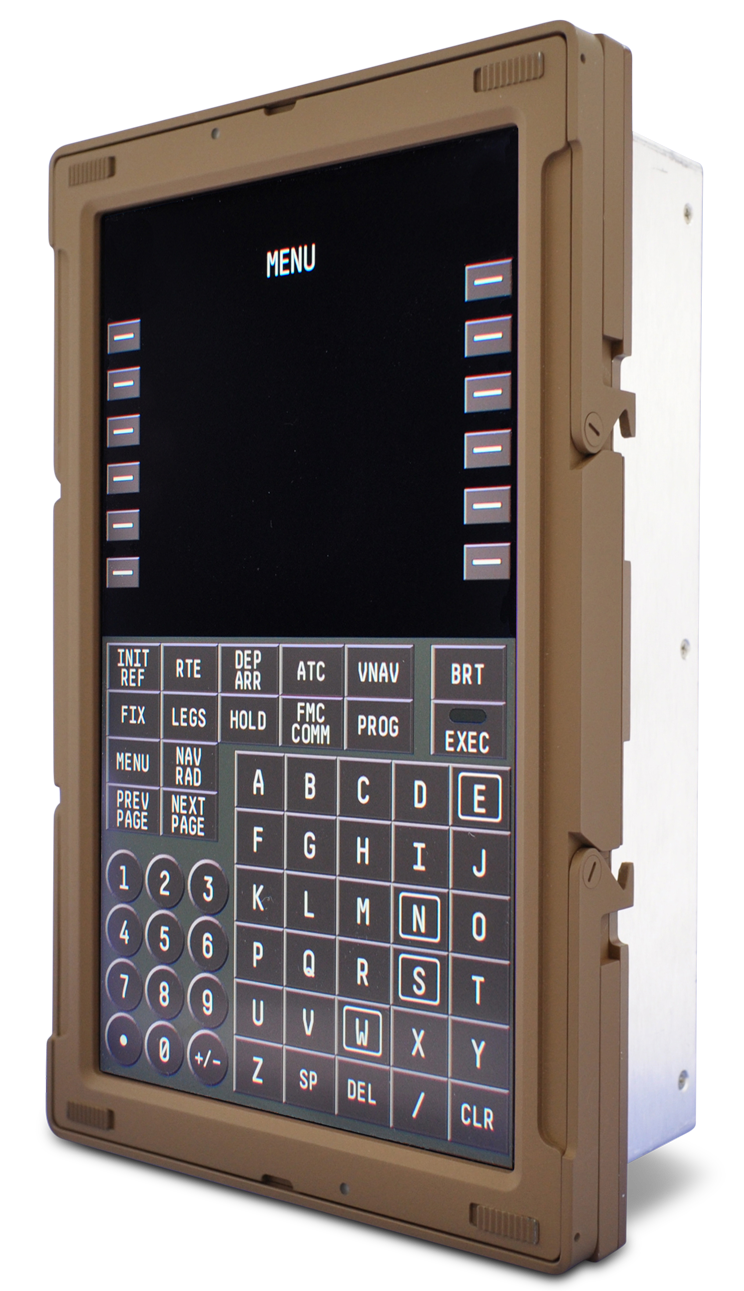

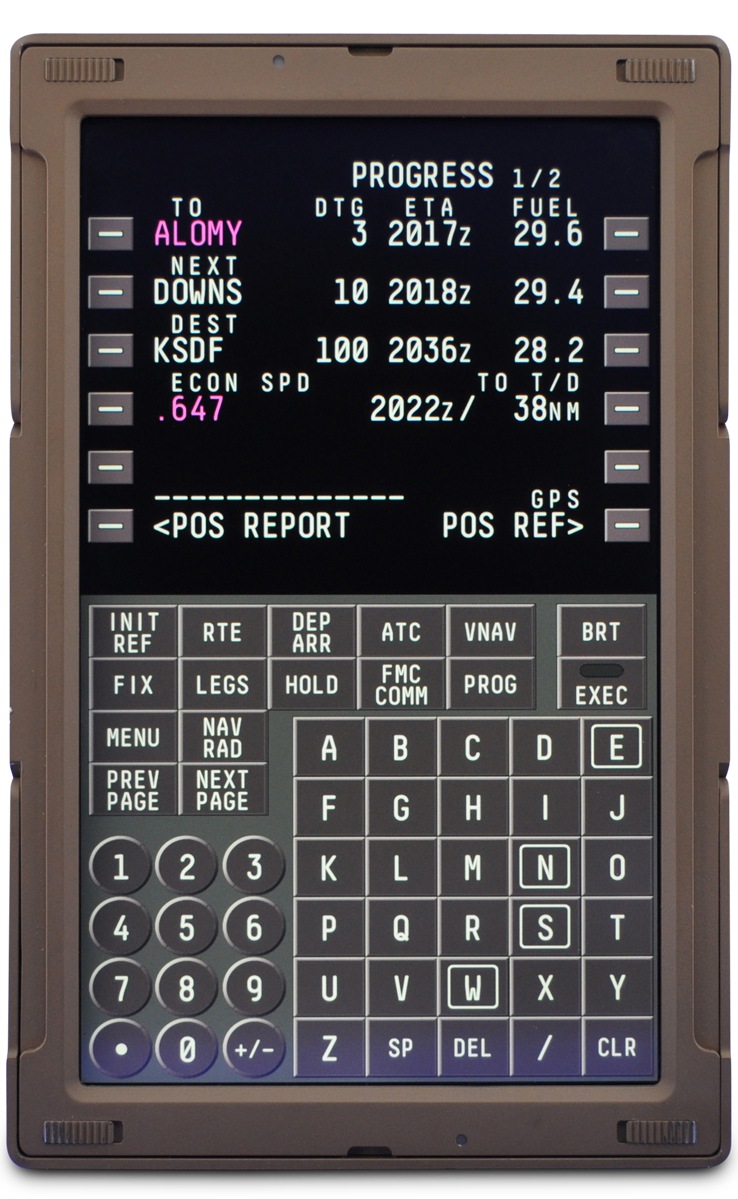

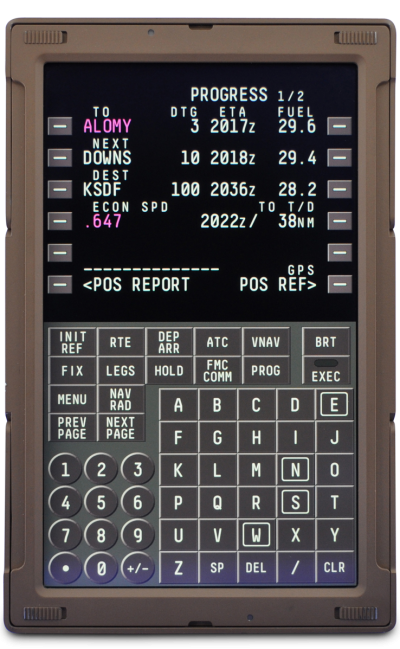

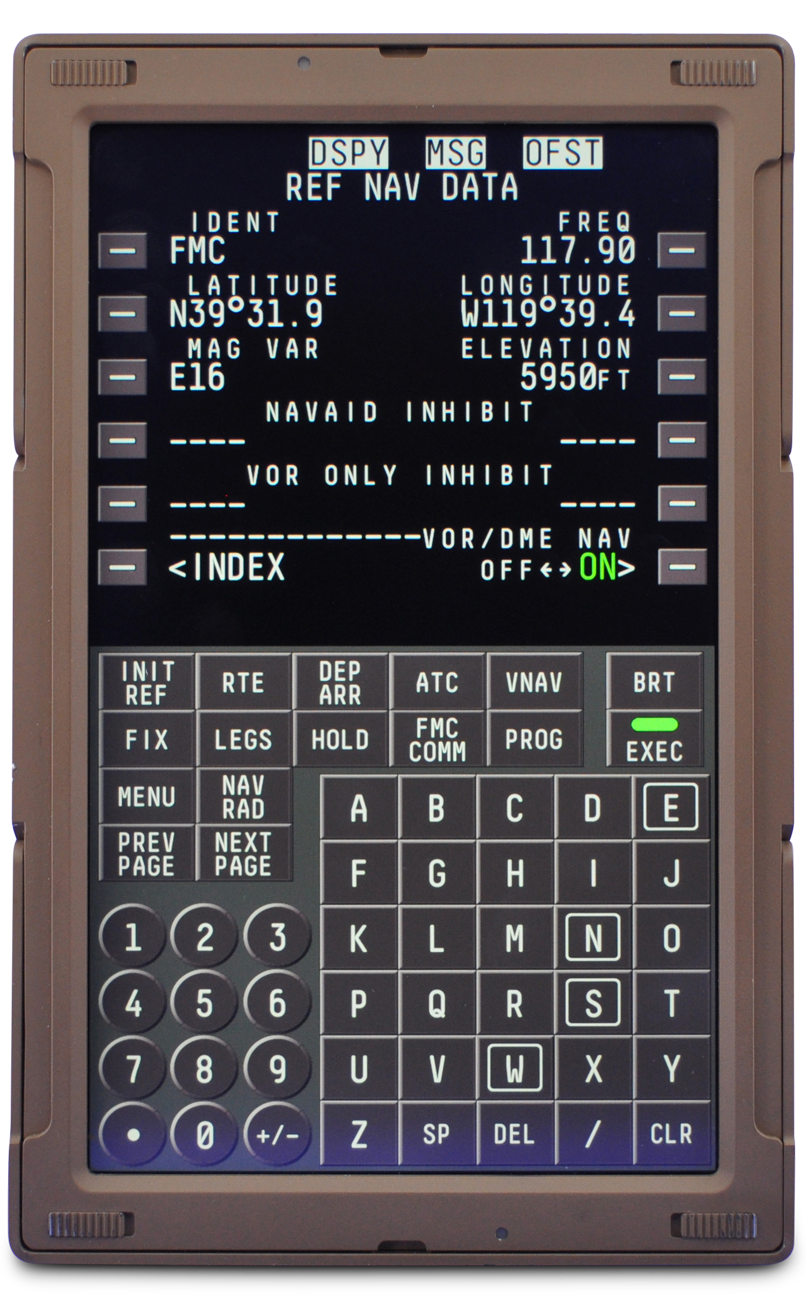

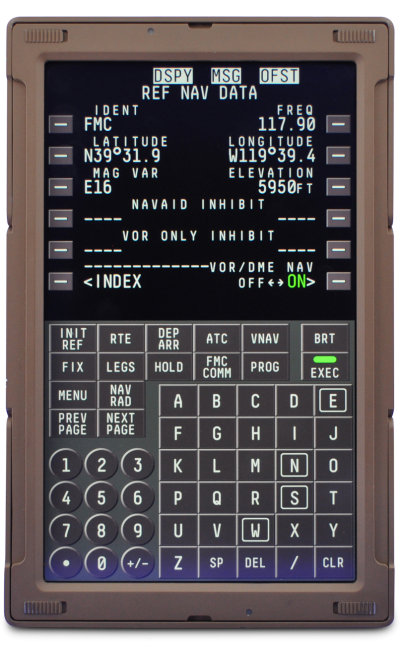

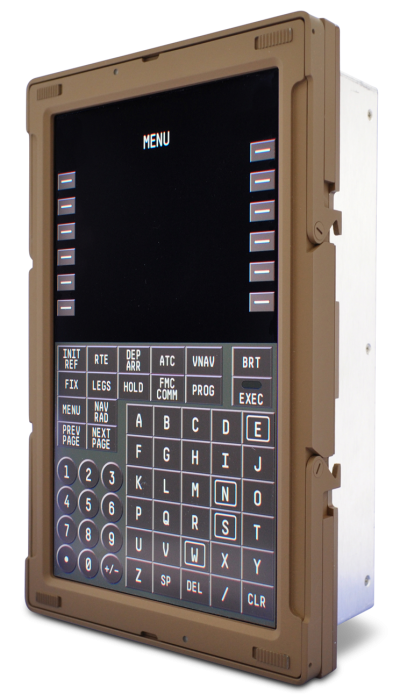

Tablet MCDU

Future Growth

Dimensions	8.985 in/228.2 mm (height) x 5.75 in/146.05 mm (width) x 2.528 in/ 64.21 mm (max depth), excluding rear connector
Colors	Boeing Brown BAC #8328 Non-reflective Gray FED STD 595b36118 Non-reflective Black FED STD 595b37038
Compliance	RTCA/DO-160G (Environmental), RTCA/DO-178B Level D (Software), RTCA/DO-254 Level C (Hardware) ARINC 429, ARINC 739A
Certification	TSO-C36e, TSO-C40c, TSO-41d, TSO-C66c, TSO-C113a Human factors per 14 CFR part 25, AC 20-175, and AC 25-11B Supported safety assessment through Functional Hazard Analysis, Reliability Estimate, and FMEA MOPS per SAE AS8034B ARINC 429, ARINC 739A
Weight	5 pounds/ 2.27kg (max)
Calculated MTBF	23,000 operating hours

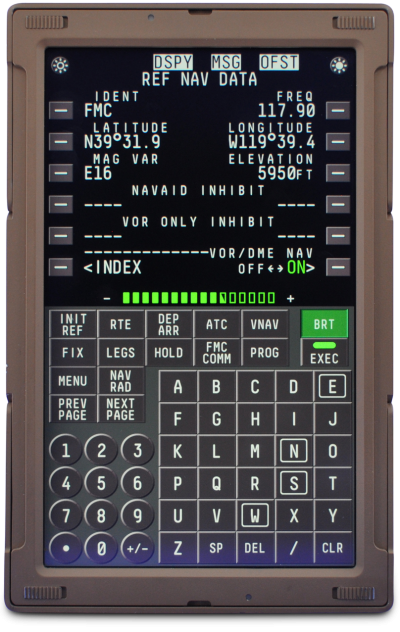

Power	Power – 115 VAC or 28 VDC, 20 Watts (max) Lighting(LEDs) – on screen BRT/DIM (w/ optional sensors) Minimal current required –only used for brightness level monitoring
Display	Resolution – 1280 (W) x 768 (H) Screen size (diagonal) – 9 inches Pixel configuration – R,G,B stripe Luminance – 120 foot Lamberts, LED lighting Contrast ratio – 500:1 (typical) Touch screen – 5-wire resistive, GFG construction
Connectors	J1 Mating: MS24266R20B41SNC, or equivalent 41 pin connector, J2 Mating: D38999/26MH-355N-LC, or equivalent 100 pin connector
